Product Detail

LS1019L 260 mm (10-1/4")

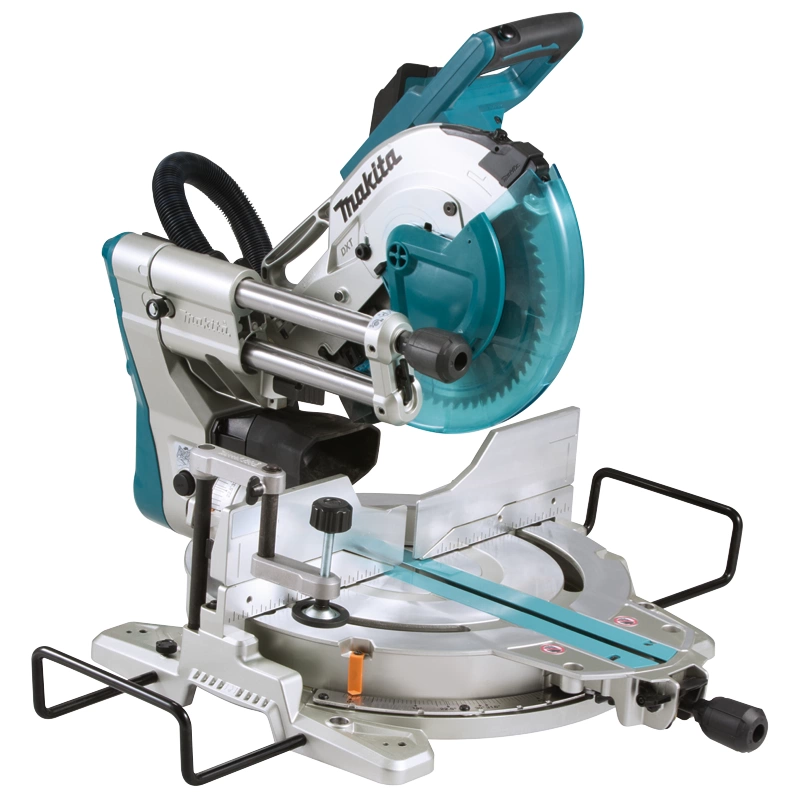

Slide Compound Miter Saw


Features


  • Large turn base supports workpiece securely for increased stability
  • Integrated guide fences for increased rigidity and high cutting accuracy
  • Increased dust extraction rate for a cleaner work environment
  • Rail-forward design enables to be placed against a wall for maximizing work space
  • Single sliding system enables smooth operation to produce superior cuts

Specification



Thumbnail
Model NameLS1019L
Continuous Rating Input1,510 W
Product NameSlide Compound Miter Saw
Blade Diameter260 mm (10-1/4")
Miter Angle60° L / 60° R
Bevel Angle48° L / 48° R
Max Cutting CapacityCrown Molding Vertically Nested: 168 mm (6 - 5/8")
Crown Molding Lying Flat: 248 mm (9 - 3/4")
Base Board Against Fence: 133 mm (5 - 1/4")
Base Board Lying Flat: 305 mm (12")
No Load Speed (RPM)3,200
Dimensions (L x W x H)805 x 644 x 660 mm (31-3/4" x 25-3/8" x 26")
Net Weight26.3 kg (57.9 lbs.)
Power Supply Cord2.5 m (8.2 ft)

Standard Equipment
EFFICUT Saw Blade, Dust Bag, Triangular Rule, Vertical Vise, Hex Wrench

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
