Product Detail

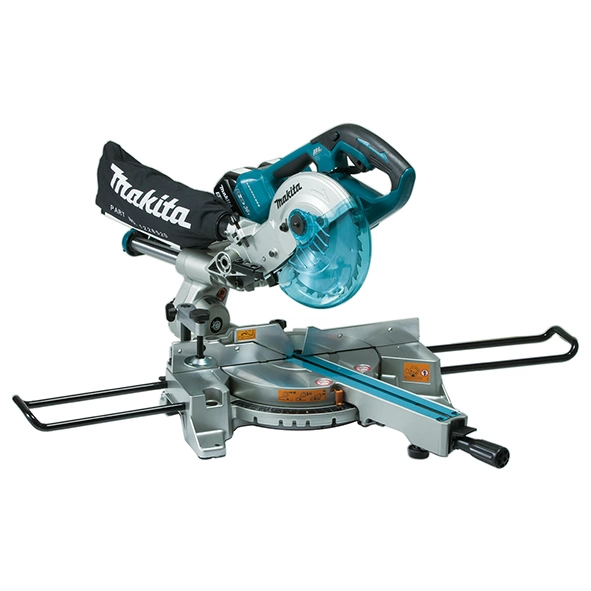

DLS714PM2/ Z 190 mm(7-1/2")

18Vx2 Cordless Slide Compound Miter Saw


Features


  • Large cutting capacity; Crosscuts up to 52 x 300 mm (2-1/16" x 11-3/4") at 90°
  • Miters 0-47 ° left and 0-57 ° right; bevels 0-45 ° left and 0-5 ° right
  • ADT (Automatic Torque Drive Technology) adjusts speed and torque during operation for optimum performance
  • Large dimensional lumber cutting capacity: 52 x 300 mm (2" x 12") at 90° and 52 x 212 mm (2" x 8") at 45°
  • Positive miter stops at: 0°, 15°, 22.5°, 30° and 45° left and right
  • Linear ball bearing system engineered to deliver “dead-on” accurate cuts



Specification



Thumbnail
Model NameDLS714PM2/ Z
Product Name18Vx2 Cordless Slide Compound Miter Saw
Blade Diameter190 mm (7-1/2")
Miter Angle47° L / 57° R
Bevel Angle45° L / 5° R
Max Cutting Capacity90°: 52 x 300 mm (2-1/16 x 11-3/4")
at 45° left: 40 x 300 mm (1-9/16 x 11-3/4")
at 5° right: 40 x 300 mm (1-9/16 x 11-3/4")
No Load Speed (RPM)5,700
Dimensions (L x W x H)655 x 430 x 445 mm (25-3/4" x 17" x 17-1/2")
Net Weight12.6 kg (27.8 lbs.)
Work Amount (approx.)350 pcs with BL1850B x2
SPF Material 2x4"

Standard equipment
TCT Saw Blade (B-03850), Dust Bag (1228520), Holder Set, Vertical Vise, Hex Wrench, Triangular Rule

Available options
PM2: 1x Two Port Multi Rapid Charger, 2x 4.0Ah Battery
Z: Without Charger & Battery



*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
