Product Detail
Features

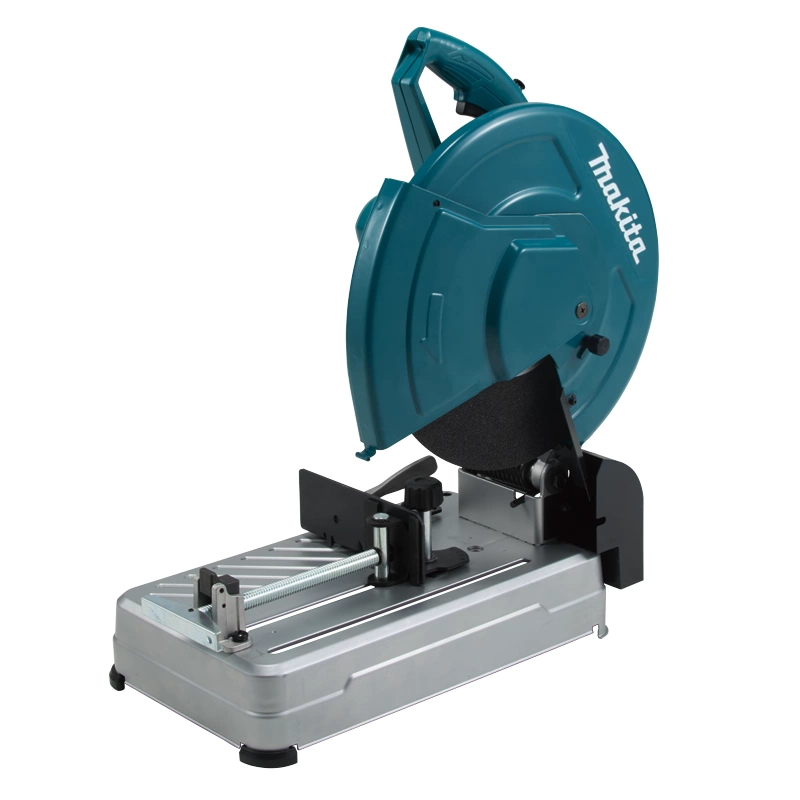

Portable Cut-off
- Replacement of Abrasive cut-off wheel and adjustment of Guide plate can be done without any tools. (for LW1400 only)
- Large spark guard prevents backward scattering of spark
- Quick release vise for secure stock retention and fast repeated cut offs
- D-shape handle for user comfort
- Carry handle for easy transport to job site
Specification
| Thumbnail |  |
| Model Name | LW1400 |
| Product Name | Portable Cut-Off |
| Continuous Rating Input | 2,200 W |
| Wheel Diameter | 355 mm (14") |
| Capacity at 45° | Round: 127 mm (5") Rectangular: 115 x 103 mm (4-1/2 x 4-1/16") Square: 106 x 106 mm (4-3/16 x 4-3/16") Triangular: 100 x 100 x 10 mm (4 x 4 x 3/8") |
| No Load Speed (RPM) | 3,800 |
| Dimensions (L x W x H) | 530 x 295 x 640 mm (20-7/8" x 11-5/8" x 25-1/4") |
| Net Weight | 18.7 kg (41.2 lbs.) |
| Power Supply Cord | 2.5 m (8.2 ft) |
Standard Equipment
Abrasive Cut-Off Wheel
Abrasive Cut-Off Wheel
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
