Product Detail
Features
- Fast Cutting Action In Steel And Aluminum With Increased Comfort, Maneuverability And Control
- Small circumference motor housing for increased comfort, maneuverability and control
- Ribbed motor housing and rear cover for improved gripping during operation
- Removes continuous metal curl with no distortion
- 360o rotatable shear head
Specification
| Thumbnail |  |
| Model Name | JS1601 |
| Continuous Rating Input | 380 W |
| Capacity | Steel up to 400 N/mm² : 1.6 mm Steel up to 600 N/mm² : 1.2 mm Steel up to 800 N/mm² : 0.8 mm Aluminum up to 200 N/mm² : 2.5 mm |
| Min Cutting Radius | 250 mm (9 - 7/8") |

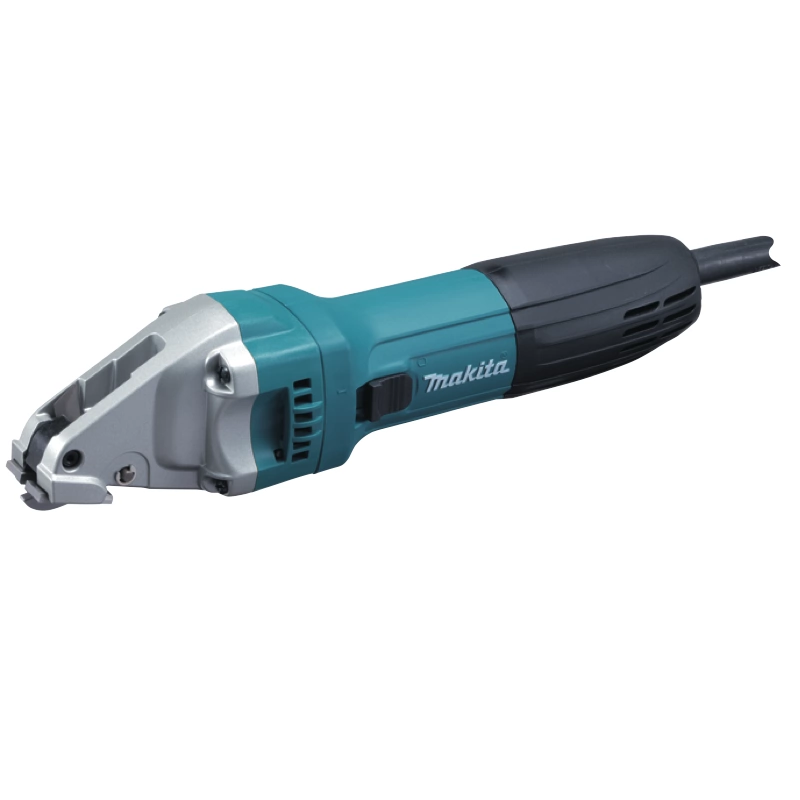

| Product Name | Straight Metal Shear |
| Strokes Per Minute (SPM) | 4,500 |
| Dimensions (L x W x H) | 320 x 70 x 78 mm (12-5/8" x 2-3/4" x 3-1/16") |
| Net Weight | 1.4 kg (3.0 lbs.) |
| Power Supply Cord | 2.5 m (8.2 ft) |
Standard Equipment
Hex Wrench, Thickness Gauge
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
