Product Detail
Features
- Powerful 1,510 W motor delivers 19.1 J of impact energy to handle the most demanding applications
- Lock-on or trigger activation in “Chipping Only” mode with a push button start/stop control
- Soft start suppresses start-up reaction for more control and better accuracy
- Depth gauge for increased drilling consistency
- LED power light indicates switch failure or cord damage
Specification

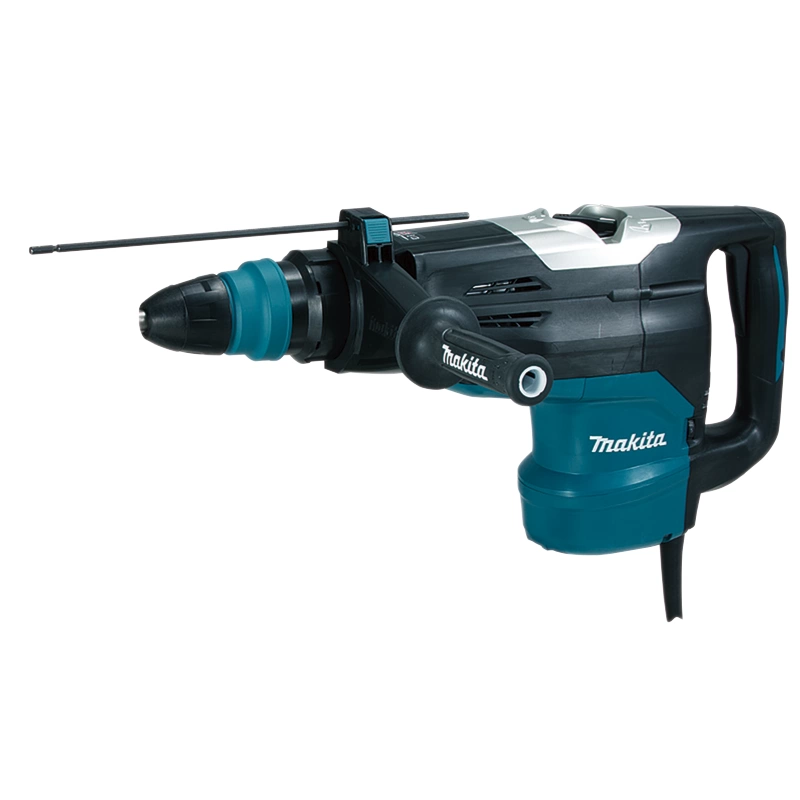

| Thumbnail |  |
| Model Name | HR5202C |
| Product Name | Rotary Hammer |
| Continuous Rating Input | 1,510 W |
| Impact Energy | EPTA-Procedure 05/2009:19.1 J Our Experimental Conditions: 21 J |
| Capacity | Concrete (with TCT Bit): 52 mm (2") Concrete (with Core Bit): 160 mm (6-5/16") |
| Impacts Per Minute (IPM) | 1,100 - 2,250 |
| No Load Speed (RPM) | 150 - 310 |
| Dimensions (L x W x H) | 599 x 134 x 287 mm (23-1/2" x 5- 1/4" x 11-1/4") |
| Net Weight | 10.9 - 11.1 kg (24.1 - 24.4 lbs) |
| Power Supply Cord | 5.0 m (16.4 ft) |
Standard Equipment
Side Handle (D), Side Grip, Depth Gauge, Grease Vessel, Cloth
Side Handle (D), Side Grip, Depth Gauge, Grease Vessel, Cloth
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
