Product Detail
Features
- Soft grip provides more comfort and control
- High durability design with zig-zag armature varnish, enhanced sealing, improved impact bolt and impact reducing cushion ring
- Compact & Lightweight design obtained by minimizing motor weight, with a newly designed tool-structure
- Powerful 800 W motor delivers 2.4 J of impact energy to handle the most demanding applications
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
Specification
| Thumbnail |  |

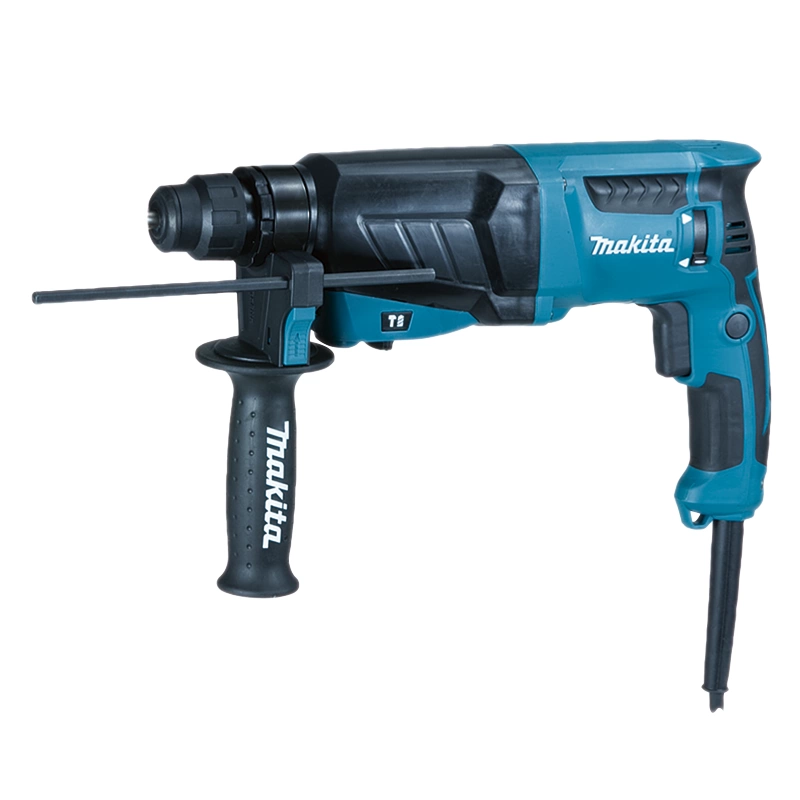

| Model Name | HR2630X3 |
| Product Name | Combination Hammer |
| Continuous Rating Input | 800 W |
| Impact Energy | EPTA-Procedure 05/2009: 2.4 J |
| Capacity | Concrete: 26 mm (1") Core Bit: 68 mm (2-11/16") Diamond Core Bit (Dry Type): 80 mm (3-1/8") Steel: 13 mm (1/2") Wood: 32 mm (1-1/4") |
| Impacts Per Minute (IPM) | 0 - 4,600 |
| No Load Speed (RPM) | 0 - 1,200 |
| Dimensions (L x W x H) | 385 x 77 x 209 mm (15-1/8 x 3 x 8-1/4") |
| Net Weight | 2.8 - 3.3 kg (6.3 - 7.2 lbs.) |
| Power Supply Cord | 2.5 m (8.2 ft) |
Standard Equipment
Side Handle, Depth Gauge, Drill Chuck, SDS-Plus Drill & Chisel Set
Side Handle, Depth Gauge, Drill Chuck, SDS-Plus Drill & Chisel Set
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
