Product Detail
Features
- Impacting mechanism for secure fastening
- Enables to drive screws even without pre-drilling pilot holes
- Easy to operate forward and reverse change lever
- Ergonomic soft rubber grip for vibration absorption and comfortable operation
- Electric brake for increased productivity
Specification

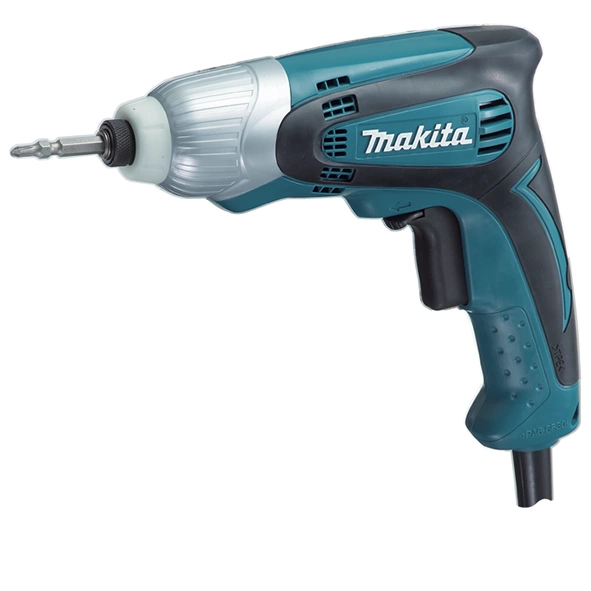

| Thumbnail |  |
| Model Name | TD0100 |
| Product Name | Impact Driver |
| Continuous Rating Input | 230 W |
| Capacity | Machine Screw: M4 - M8 (5/32 - 5/16") Standard Bolt: M5 - M14 (3/16 - 9/16") High Tensile Bolt: M5 - M10 (3/16 - 3/8") Coarse Thread (in length): 22 - 90 mm (7/8 - 3-1/2") |
| Driving Shank (Hex) | 6.35 mm (1/4") |
| Impacts Per Minute (IPM) | 0 - 3,200 |
| Max Fastening Torque | 100 N·m (74ft. lbs.) |
| No Load Speed (RPM) | 0 - 3,600 |
| Dimensions (L x W x H) | 218 x 60 x 180 mm (8-5/8" x 2-3/8" x 7-1/8") |
| Net Weight | 0.96 kg (2.1 lbs.) |
| Power Supply Cord | 2.5 m (8.2 ft) |
Standard Equipment
Philips Bit
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
