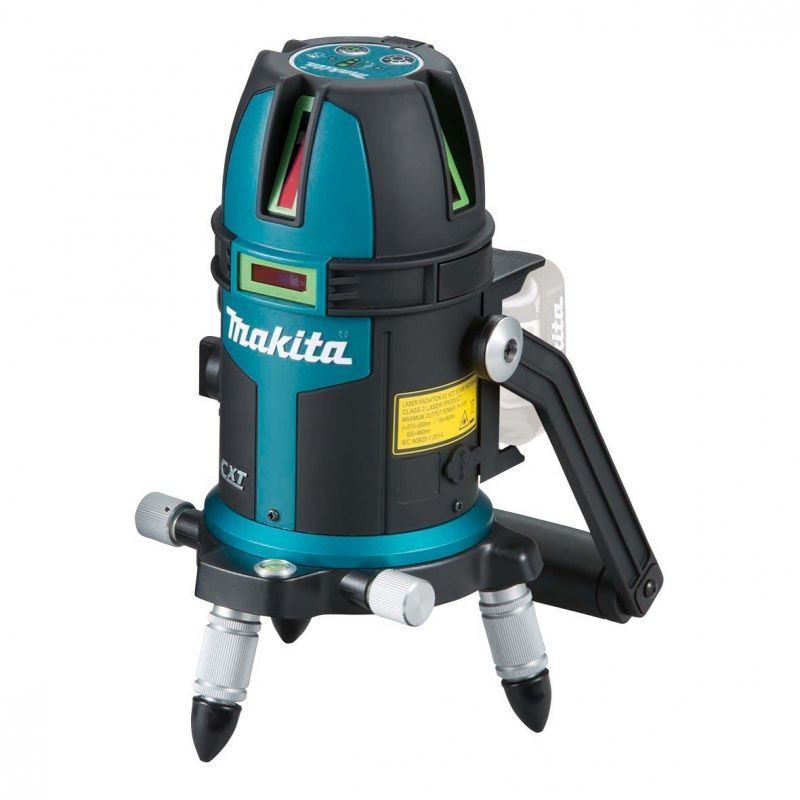

12Vmax Rechargeable Green Multi Line Laser


  • High Brightness Green Laser for Increased Visibility at Bright Site
  • Horizontal line > Horizontal/vertical line > 3-Vertical line/horizontal line (Loopback switch system)
  • High accuracy +/-1 mm @ 10 m
  • Up to 28 hours of continuous illumination in high visibility mode with BL1041B
  • Laser wavelength 515 nm / Lower dot beam wavelength 650 nm



Model NameSK312GDZ
Product Name12Vmax Rechargeable Green Multi Line Laser
Leveling Accuracy±1 mm/ 10 m
Self-Leveling Range±2°
Laser Fan AngleHorizontal: 110°
Vertical: 130°
Laser TypeLaser class 2: 515 nm
Tripod Thread5/8"
Protection ClassIP54
Number Of Laser Lines3
Dimensions (L x W x H)BL1021B: 122 x 110 x 225 mm
Net Weight1.5 - 1.6 kg (3.3 - 3.5 lbs.)
Continuous Use (hours)5 -14 hrs with BL1021B

Standard Equipment
Laser Viewing Glass, Shoulder Strap, Storage Case

Available Option(s)
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
