Product Detail
SK209GDZ

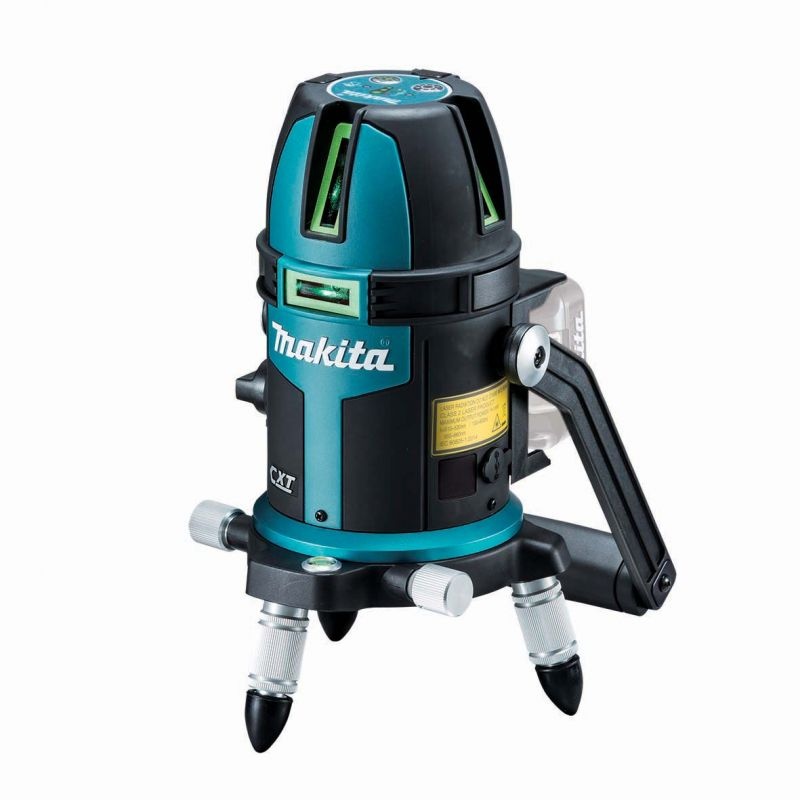

12Vmax Rechargeable Green Multi Line Laser
Features
- High Brightness Green Laser for Increased Visibility at Bright Site
- Horizontal line > 2-Vertical line > 2-Vertical line/horizontal line (Loopback switch system)
- High accuracy +/-1 mm @ 10 m
- Up to 40 hours of continuous illumination in high visibility mode with BL1041B
- Laser wavelength 515 nm / Lower dot beam wavelength 650 nm
Specification
| Thumbnail |  |
| Model Name | SK209GDZ |
| Leveling Accuracy | ±1 mm/ 10 m |
| Self-Leveling Range | ±2° |
| Laser Fan Angle | Horizontal: 110° Vertical: 130° |
| Number of Laser Lines | 3 |
| Laser Type | Laser class 2: 515 nm |
| Tripod Thread | 5/8" |
| Protection Class | IP54 |
| Product Name | 12Vmax Rechargeable Green Multi Line Laser |
| Dimensions (L x W x H) | 122 x 110 x 225 mm |
| Net Weight | 1.5 - 1.6 kg (3.3 - 3.5 lbs.) |
| Continuous Usage Time (approx.) | 20 hrs with BL1021B at Max output |
Standard Equipment
Laser Viewing Glass, Shoulder Strap, Storage Case
Available Option
GDZ: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
