Product Detail

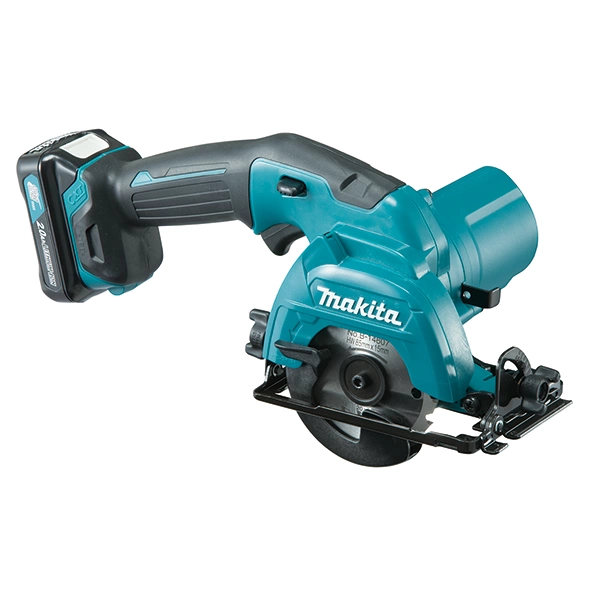

HS301DSME/ DWAE/ DZ 85mm (3-3/8")

12Vmax Cordless Circular Saw


Features


  • Adjustable cutting depth from 25.5 mm (1") at 90° and 16.5 mm (5/8") at 45°
  • Tilting base for bevel cuts from 0° - 45°
  • Built-in dust blower helps keep the line of cut free of debris for increased accuracy
  • Battery protection circuit protects against overloading, over-discharging and over-heating
  • On-tool hex wrench for fast and easy blade changes and keeping it from lost



Specification



Thumbnail
Model NameHS301DSME/ DWAE/ DZ
Product Name12Vmax Cordless Circular Saw
Blade Diameter85 mm (3-3/8")
Max Cutting Capacity90°: 25.5 mm (1")
45°: 16.5 mm (5/8")
No Load Speed (RPM)1,500
Dimensions (L x W x H)313 x 170 x 155 mm (12-3/8" x 6-11/16" x 6-1/8")
Net Weight1.6 - 1.7 kg (3.5 - 3.8 lbs.)
Work Amount (approx.)140 cuts with BL1021B
Sawing (SPF 1" x 4" 0 Degree Cut)

Standard equipment
TCT Saw Blade (B-14607), Hex Wrench

Available options
DSME: 1x Speed Charger, 2x 4.0Ah Battery
DWAE: 1x Standard Charger, 2x 2.0Ah Battery
DZ: Without Charger, Battery & Carrying Case

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
