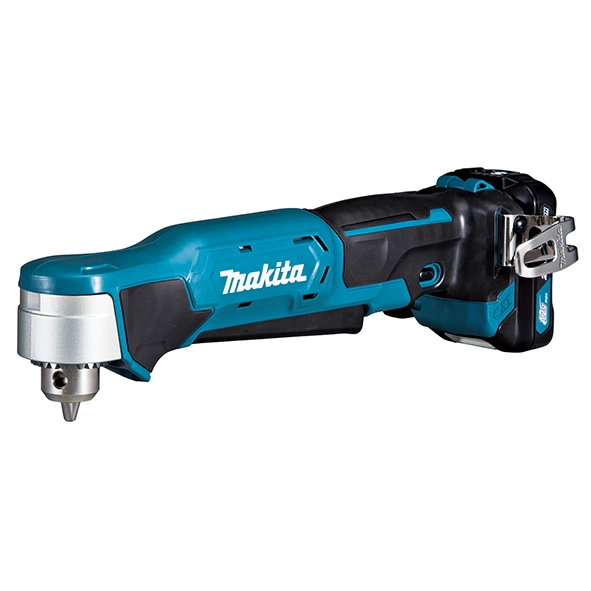

DA332DWAE/ DZ 10mm (3/8")

12Vmax Cordless Angle Drill


  • Multi-contact terminals ensure stable contact with battery even under extreme vibration
  • Battery protection circuit protects against overloading, over-discharging and over-heating
  • LED light with preglow and afterglow feature illuminates the work area
  • Compact Angle Head Height & Center Height for Use in Close Quarters
  • Up to 40% faster drilling and 380% longer runtime*¹




Model NameDA332DWAE/ DZ
CapacitySteel: 10 mm (3/8")
Wood: 12 mm (1/2")
Head Height63 mm (2-1/2")
Center Height23.5 mm (15/16")
Product Name12Vmax Cordless Angle Drill
No Load Speed (RPM)0 - 1,100
Dimensions (L x W x H)BL1021B: 313 x 68 x 86 mm (12-3/8" x 2-11/16" x 3-3/8")
BL1041B: 332 x 68 x 86 mm (13-1/8" x 2-11/16" x 3-3/8")
Net Weight1.2 - 1.3 kg (2.6 - 2.9 lbs )
Work Amount600 pcs with BL1021B
Wood Screw Ø 4.1 x 38 mm

Standard equipment
Chuck Key, Chuck Key Holder, Phillips Bit, Belt Clip

Available options
DWAE: 1x Standard Charger, 2x 2.0Ah Battery
DZ: Without Charger, Battery & Carrying Case

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
