Product Detail
Features
- Soft no-load rotation reduces vibration and aligns blade with the cutting line easily
- Toolless blade clamp for easy blade change
- LED job light brightly illuminates the cut line for easy cutting in the dark place
- Electric brake for increased operator safety
- Built-in dust blower clears the line of cut for increased accuracy
Specification
| Thumbnail |  |
| Model Name | JV103DSMJ/ DWAJ/ DZ |
| Max Cutting Capacity at 90° | Wood: 90 mm (3-1/2") | Aluminum: 20 mm (13/16") | Mild Steel: 10 mm (3/8") |

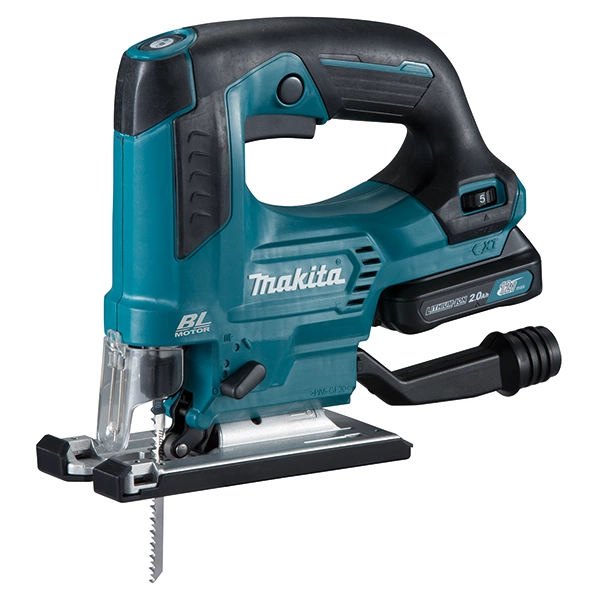

| Product Name | 12Vmax Cordless Jig Saw |
| Length of Stroke | 23 mm (7/8") |
| Strokes Per Minute (SPM) | 800 - 3,000 |
| Dimensions (L x W x H) | 237 x 76 x 206 mm (9-3/8" x 3" x 8-1/8") |
| Net Weight | 1.9 - 2.0 kg (4.1 - 4.4 lbs.) |
| Work Amount (approx.) | 90 pcs with BL1021B Sawing (Plywood 300 mm long x 12 mm thickness) |
Standard equipment
Jig Saw Blade (B-10), Hex Wrench
Available options
DSMJ: 1x Speed Charger, 2x 4.0Ah Battery, 1x Makpac Connector Box
DWAJ: 1x Standard Charger, 2x 2.0Ah Battery, 1x Makpac Connector Box
DZ: Without Charger, Battery & Carrying Case
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
