Product Detail
Features
- Fast cutting, lightweight
- 3 Orbital settings plus straight cutting for use in a wide range of materials
- Built-in dust blower clears the line of cut for increased accuracy
- Electric brake for increased operator safety
- Dust cover prevents scattering of tips
Specification
| Thumbnail |  |
| Model Name | JV101DWAE/ DWYE/ DZ |
| Max Cutting Capacity at 90° | Wood: 65 mm (2 - 9/16") | Aluminum: 4 mm (5/32") | Mild Steel: 2 mm (1/16") |

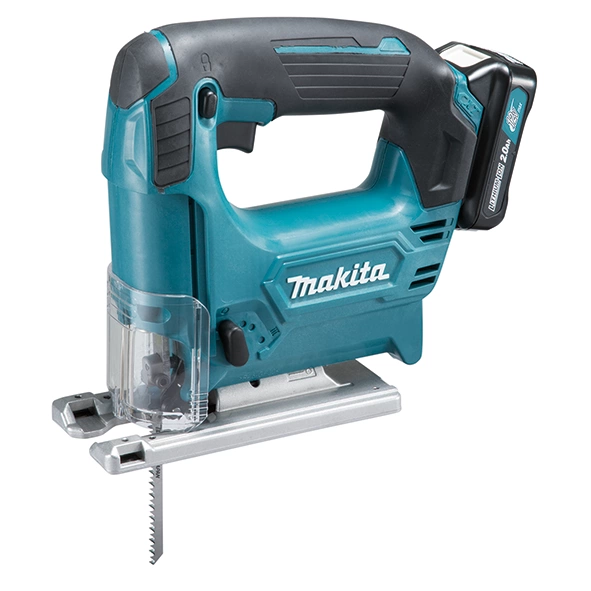

| Product Name | 12Vmax Cordless Jig Saw |
| Length of Stroke | 18 mm (11/16") |
| Strokes Per Minute (SPM) | 0 - 2,900 |
| Dimensions (L x W x H) | 232 x 76 x 196 mm (9-1/8" x 3" x 7-3/4") |
| Net Weight | 1.8 - 1.9 kg (3.9 - 4.3 lbs.) |
| Work Amount (approx.) | 60 pcs with BL1021B Sawing (Plywood 300 mm long x 12 mm thickness) |
Standard equipment
Jig Saw Blade (B-10), Hex Wrench
Available options
DWAE: 1x Standard Charger, 2x 2.0Ah Battery
DWYE: 1x Standard Charger, 2x 1.5Ah Battery
DZ: Without Charger, Battery & Carrying Case
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
