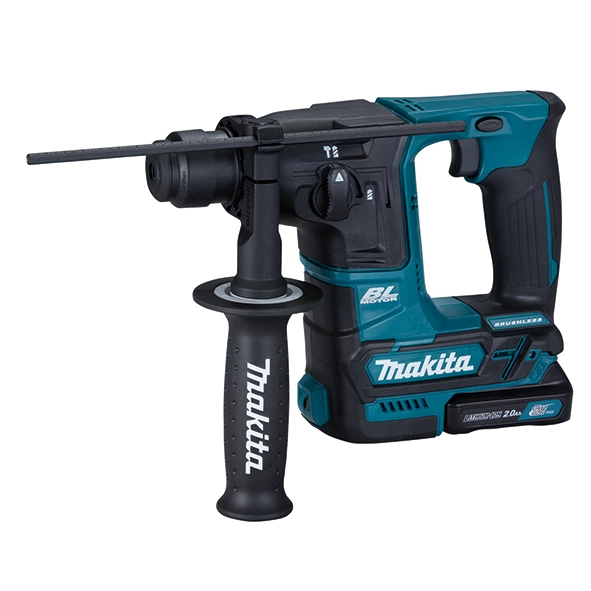

HR166DSMJ/ DZK/ DZ 16 mm (5/8")
12Vmax Cordless Rotary Hammer
Features
- Vibration absorbing housing and ergonomic soft rubber grip design for vibration absorption and comfortable operation.
- Close-to-hand gravity center for optimum balance and control.
- Built-in LED light with afterglow function illuminates the work area.
- 2-Mode operation for "Rotation Only" or "Hammering with Rotation" for multiple applications.
- Variable speed trigger allows operator to adjust speed based on materials or application.
Specification
| Thumbnail |  |
| Model Name | HR166DSMJ/ DZK/ DZ |
| Impact Energy | EPTA-Procedure 05/2009: 1.1 J Our Experimental Conditions: 1.0 J |
| Capacity | Concrete: 16 mm (5/8") Steel: 10 mm (3/8") Wood: 13 mm (1/2") |
| Product Name | 12Vmax Cordless Rotary Hammer |
| Impacts Per Minute (IPM) | 0 - 4,800 |
| No Load Speed (RPM) | 0 - 680 |
| Dimensions (L x W x H) | 250 x 74 x 187 mm (9-7/8 x 2-15/16 x 7-3/8") |
| Net Weight | 1.8 - 2.4 kg (4.1 - 5.4 lbs) |
| Work Amount (approx.) | 42 holes with BL1021B Mansory Drill Ø 6 mm Concrete 40N/ mm² Depth 40 mm |
Standard Equipment
Side Grip, Depth Gauge
Available Options
DSMJ: 1x Speed Charger, 2x 4.0Ah Battery, 1x Makpac Connector Box Type 2
DZK : With Carrying Case, Without Charger & Battery
DZ: Without Charger, Battery & Carrying Case
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
