Product Detail

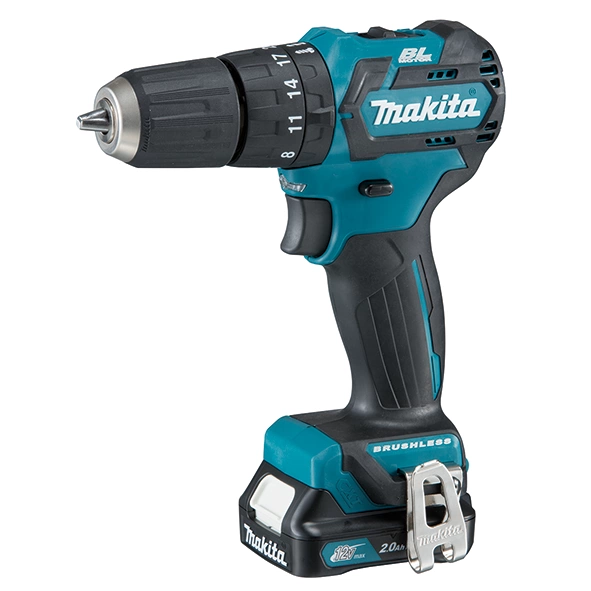

HP332DSME/ DSAE/ DZ 10 mm (3/8")

12Vmax Cordless Hammer Driver Drill


Features


  • Lightweight for reduced operator fatigue
  • 12V max slide battery design enables the tool to stand on its own for user convenience
  • Multi-contact terminals ensure stable contact with battery even under extreme vibration
  • Ergonomically designed handle with soft grip provides increased comfort
  • Built-in LED light with pre-glow and afterglow functions illuminates the work area



Specification



Thumbnail
Model NameHP332DSME/ DSAE/ DZ
CapacitySteel: 10 mm (3/8")
Wood : 28 mm (1-1/8")
Masonry: 8 mm (5/16")
Product Name12Vmax Cordless Hammer Driver Drill
Chuck Capacity0.8 - 10 mm (1/32 - 3/8")
Impacts Per Minute (IPM)High: 0 - 22,500
Low : 0 - 6,750
Max Fastening TorqueHard: 35 N·m (310 in. lbs.) | Soft: 21 N·m (190 in. lbs.)
Max Lock Torque32 N·m (280 in. lbs.)
No Load Speed (RPM)High: 0 - 1,500 | Low: 0 - 450
Dimensions (L x W x H)168 x 66 x 217 mm (6-5/8" x 2-5/8" x 8-1/2")
Net Weight1.1 - 1.3 kg (2.4 - 2.8 lbs.)
Work Amount (approx.)460 holes with BL1021B
Auger Bit drilling Ø 9 mm, Melapi 30 mm thickness

Standard Equipment
Philips Bit, Belt Clip

Available Options
DSME: 1x Speed Charger, 2x 4.0Ah Battery
DSAE: 1x Speed Charger, 2x 2.0Ah Battery
DZ: Without Charger, Battery & Carrying Case

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
