Product Detail

DCO180Z 6.35 mm (1/4")

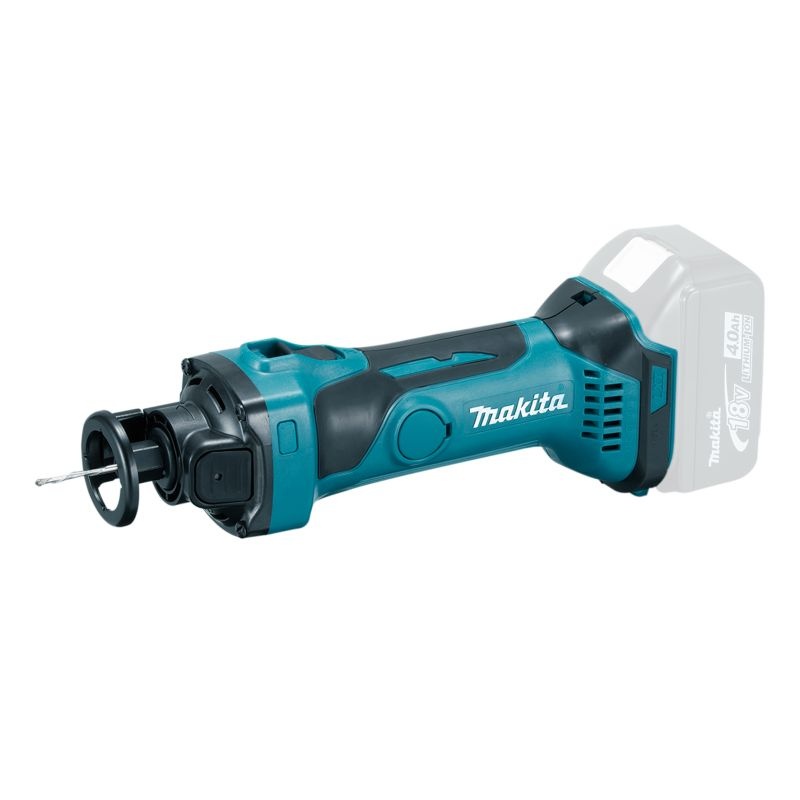

18V Cordless Cut-Out Tool


  • Vent slots direct air and debris away from the operator
  • Slide switch with lock-on for operator convenience
  • Quick and easy "tool-less" depth adjustment
  • On board bit change capabilities eliminates need for wrench
  • Accepts both 1/8" and 1/4" bits




Model NameDCO180Z
Product Name18V Cordless Cut-Out Tool
Collet Capacity3.18 mm (1/8") | 6.35 mm (1/4")
No Load Speed (RPM)30,000
Dimensions (L x W x H)296 x 77 x 118 mm (11-5/8 x 3 x 4-5/8")
Net Weight1.5 - 1.8 kg (3.3 - 4.0 lbs.)
Work Amount (approx.)225 m with BL1850B
6.35 mm Bit Cutting Plaster Board 1.2 x 800 mm

Standard Equipment
Drywall Guide Bit x2, Collet Nut, Collet Cone 6.35 mm (1/4")

Available Option
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
