Product Detail

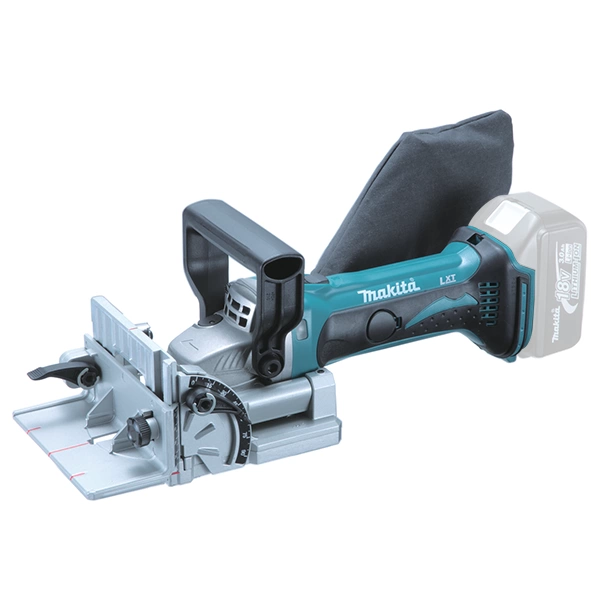

18V Cordless Plate Joiner


  • Six depth settings with one-touch stops for #0, #10, and #20 and most common biscuits sizes
  • Large and easy-to-operate cam locks for fence adjustments
  • Toolless blade cover and shaft lock for fast and easy blade changes
  • Non-marring rubber inserts on shoe engineered to prevent material from slipping
  • Electronic current limiter (with warning lamp)




Model NameDPJ180Z
Max Cutting Depth20 mm (3/4")
Product Name18V Cordless Plate Joiner
Blade Diameter100 mm (4")
No Load Speed (RPM)6,500
Dimensions (L x W x H)351 x 139 x 149 mm (13-3/4 x 5-1/2 x 5-7/8")
Net Weight2.8 - 3.1 kg (6.2 - 6.8 lbs.)
Work Amount (approx.)333 pcs with BL1850B
Biscuit (60 x 23 x 4) Cutting Slot 12.3 mm

Standard equipment
Cutter Blade, Angle Guide, Lock Nut Wrench, Set Plate, Dust Bag

Available options
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
