Product Detail


  • High cutting speed (Max 3,000 SPM) and stroke length (20 mm) provide higher cutting efficiency
  • Vertical crank mechanism minimizes blade deflection and reduces vibration to machine
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • LED job light with preglow and afterglow functions illuminates cutting area
  • Electric brake for maximum productivity and increased operator safety




Model NameDJR188Z
CapacityPipe : 130 mm (5-1/8")
Wood: 255 mm (10")

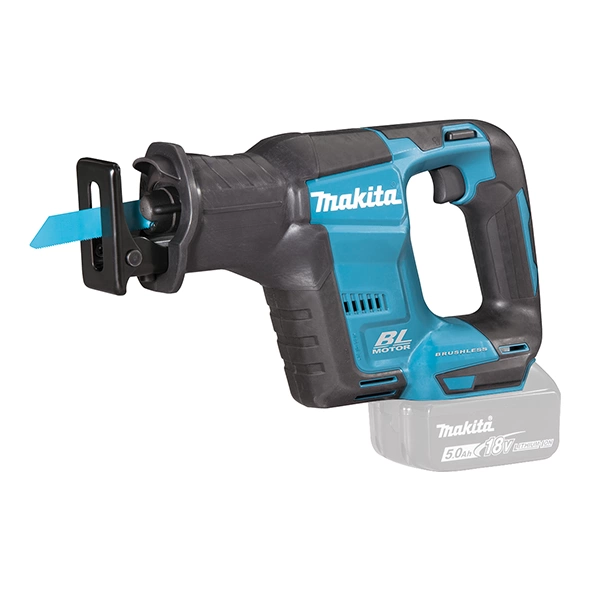

Product Name18V Cordless Recipro Saw
Length of Stroke20 mm (13/16")
Strokes Per Minute (SPM)0- 3,000
Dimensions (L x W x H)BL1815N: 316 x 81 x 203 mm
(12-1/2" x 3-3/16" x 8")
BL1850B: 316 x 81 x 220 mm
(12-1/2" x 3-3/16" x 8-5/8")
Net Weight2.6 - 2.9 kg (5.7 - 6.4 lbs.)
Work Amount (approx.)58 pcs with BL1850B x1
Cutting (Steel Pipe Ø 34 x 3 mm)

Standard equipment
Recipro Saw Blades 2pcs (B-20432 & B-20404)

Available options
Z: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
