Product Detail

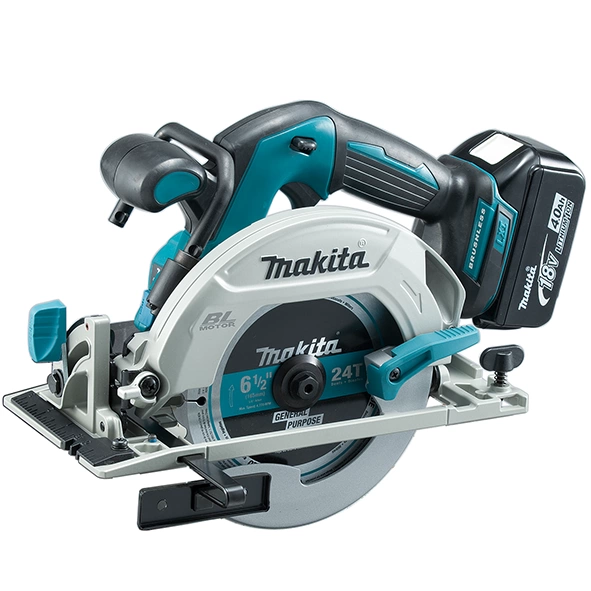

DHS680RFJ/ RMJ/ Z 165 mm (6-1/2")
18V Cordless Circular Saw
Features
- ADT (Automatic Torque Drive Technology) adjusts speed and torque during operation for optimum performance
- Blower function blows sawdust off the cut line ahead for a better cutting view
- Dual LED job lights for more visibility
- Electric brake for maximum productivity and increased operator safety
- LED indicator panel with 3 indicators for: Battery Fuel Gauge, Automatic Torque Drive and Overload Protection
Specification
| Thumbnail |  |
| Model Name | DHS680RFJ/ RMJ/ Z |
| Product Name | 18V Cordless Circular Saw |
| Blade Diameter | 165 mm (6-1/2") |
| Max Cutting Capacity | 90°: 57 mm (2 - 1/4") 45°: 41 mm (1-5/8") 50°: 37 mm (1 - 7/16") |
| No Load Speed (RPM) | 5,000 |
| Dimensions (L x W x H) | 350 x 170 x 238 mm (13-3/4" x 6-11/16" x 9-3/8") |
| Net Weight | 3.0 - 3.3 kg (6.6 - 7.3 lbs.) |
| Work Amount (approx.) | 170 pcs with BL1850B Sawing with Standard Blade, 90° cut SPF 2 x 10 (Thickness 38mm, Width 89mm) |
Standard Equipment
TCT Saw Blade (B-63018), Hex Wrench, Rip Fence (Guide Rule)
Available Options
RMJ: 1x Rapid Charger, 2x 4.0Ah Battery, 1x Makpac Connector Box (Type 3)
RFJ: 1x Rapid Charger, 2x 3.0Ah Battery, 1x Makpac Connector Box (Type 3)
Z: Without Charger, Battery & Carrying Case
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
