Product Detail

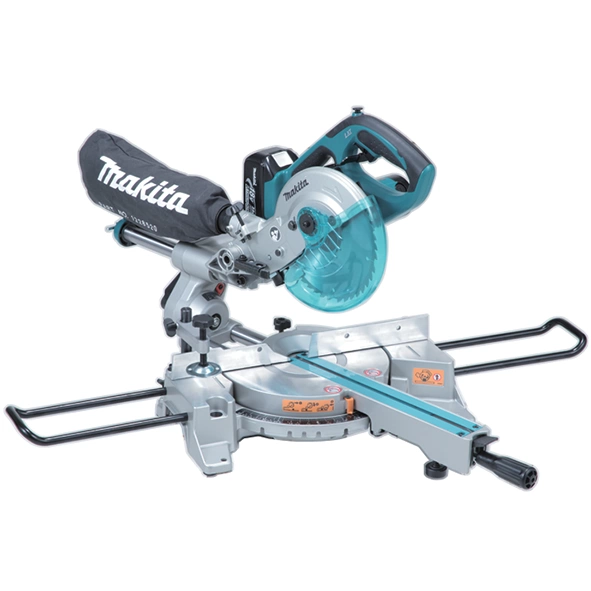

DLS713RME/ Z 190mm (7-1/2")
18V Cordless Slide Compound Miter Saw
Features
- Four steel rail sliding system increases rigidity to produce superior accurate cuts
- Holders are provided on both sides of the tool to hold long workpieces horizontally
- Direct drive gearbox for increased cutting efficiency and less maintenance
- Electric brake for maximum productivity
- Dust bag for a cleaner work environment
Specification
| Thumbnail |  |
| Model Name | DLS713RME/ Z |
| Product Name | 18V Cordless Slide Compound Miter Saw |
| Blade Diameter | 190 mm (7-1/2") |
| Miter Angle | 47° L / 57° R |
| Bevel Angle | 45° L / 5° R |
| Max Cutting Capacity | 90°: 52 x 300 mm (2-1/16 x 11-3/4") |
| No Load Speed (RPM) | 2200 |
| Dimensions (L x W x H) | 655 x 430 x 454 mm (25-3/4" x 17" x 17-7/8") |
| Net Weight | 12.1 kg (26.7 lbs.) |
| Work Amount (approx.) | 300 pcs with BL1850B Sawing (Merbau Decking 90 x 19 mm) |
Standard equipment
TCT Saw Blade (A-86147), Vertical Vise, Socket Wrench, Triangular Rule, Dust Bag, Holder Set
Available options
RME: 1x Rapid Charger, 2x 4.0Ah Battery
Z: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
