Product Detail
Features
- 7.2V Li-Ion Cordless Two-Position 25 N·m (220 in.lbs.) Impact Driver
- Released with the same core performance, including maximum fastening torque, as the current TD022D, but with a refreshed exterior design.
- Delivers 25 N·m (220 in.lbs.) of Max Torque in a compact design
- 0-2,450 RPM and 0-3,000 IPM for reduced fastening time
- Easy-to-grip tapered bit sleeve;
- Designed for easy and quick bit removal
- Convenient 6.35 mm (1/4") hex chuck for quick bit changes - One-touch bit installation;
The bit can be locked in place with a simple push-in motion without pulling back the bit sleeve.
(The same structure as DTD173)
Specification

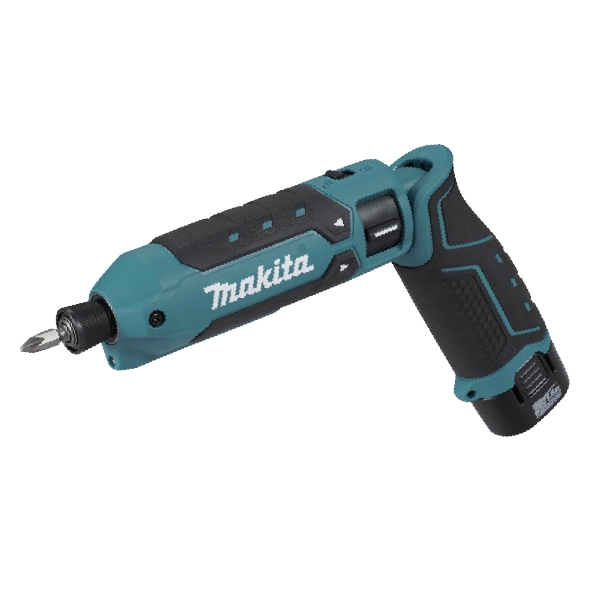

| Thumbnail |  |
| Model Name | TD023DSX1/ Z |
| Product Name | 7.2V Cordless Impact Driver |
| Capacity | Machine Screw: M3 - M8 (1/8 - 5/16") Standard Bolt: M3 - M8 (1/8 - 5/16") High Strength Bolt: M3 - M6 (1/8 - 1/4") Coarse Thread (in length): 22 - 45mm (7/8 - 1-3/4") |
| Hex Shank | 6.35 mm (1/4") |
| Impacts Per Minute (IPM) | 0 - 3,000 |
| Max Fastening Torque | 25 N·m (220 in lbs) |
| No Load Speed (RPM) | 0 - 2,450 |
| Dimensions (L x W x H) | Straight Style: 285 x 42 x 52 mm (11-1/4 x 1-5/8 x 2-1/16") Pistol Style: 229 x 42 x 142 mm (9 x 1-5/8 x 5-5/8") |
| Net Weight | 0.58 kg (1.3 lbs) |
| Work Amount (approx.) | 320 pcs with BL0715 Wood screw Ø 3.1 x 25 mm (Melapi Drove Wood) |
Standard Equipment
Double Screw Driver Bit x1, Holster
Available Option
DSX1: 1x Standard Charger, 2x 1.5Ah Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
