Product Detail

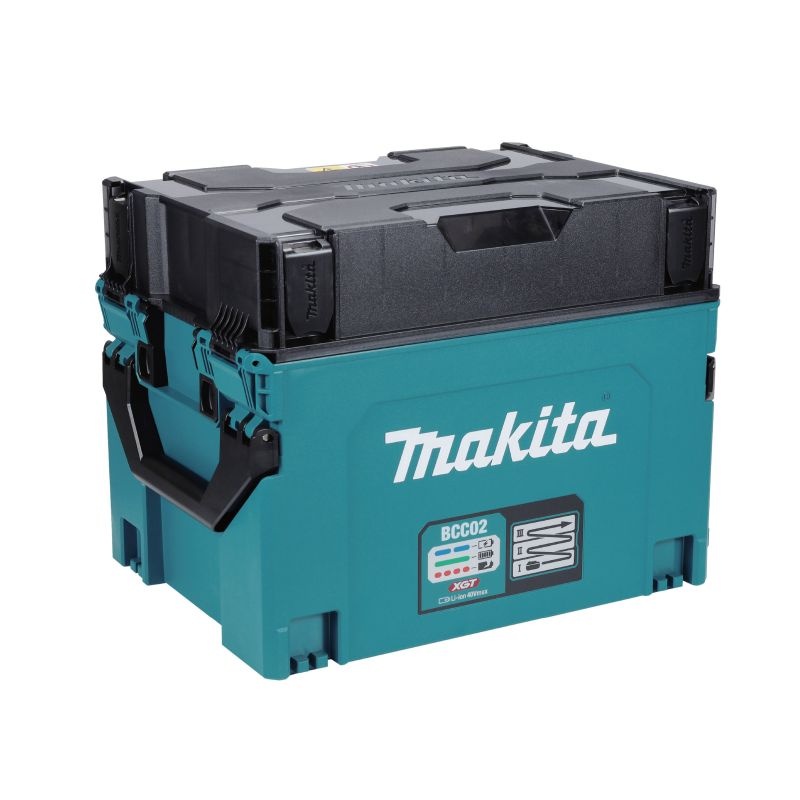

BCC02

40Vmax Battery Charging Case


Features


  • Switch charging of batteries attached to multiple ports.
    • Batteries are charged by connecting adapter-type charger DC4002 to multi-port Battery Charging Case BCC02.
    • Capable of charging all batteries on four ports simultaneously. Equipped with a feature that automatically switches batteries to charge them.
  • Multiple units can be connected to a single outlet.
    Targeting nighttime charging of a large number of batteries, multiple units can be connected simultaneously to a single power outlet with reduced power consumption.
  • Designed to be connected to MAKPAC carriers.
    • The same size as MAKPAC type 4.
    • Can be carried to the site by the MAKPAC trolley or cart.
  • Rotatable twin handles.
    • The handles are placed at two locations on both sides, allowing for two-handed grip.
    • The handles can be stored on the sides of the case when not in use.
    • The handles can be raised at an angle of 135° for easy grip during carrying.
  • Removable lid and vertical or horizontal case placing.
    • The case can be placed vertically on a shelf with the lid removed. (the lid can be removed/attached without tools).
    • Charging stations can be set up easily using shelves in offices, etc.
    • Can be placed vertically or horizontally on a shelf depending on the space available.

Specification



Thumbnail
Model NameBCC02
Max Output Power230.4 W
Total Chargeable Capacity1,728 Wh
Number of Charging Ports12 (Switched in units of four ports)
Product Name40Vmax Battery Charging Case
Dimensions (L x W x H)295 x 407 x 320 mm
(11-5/8 x 16 x 12-5/8")
Net Weight6.8 - 7.8 kg (15.0 - 17.2 lbs)
Power Supply Cord2.0 m (6.6 ft)
* Not compatible with BL4050F, BL4080F & BL4080H batteries

Standard Equipment
Charger DC4002
