Product Detail

BCC01

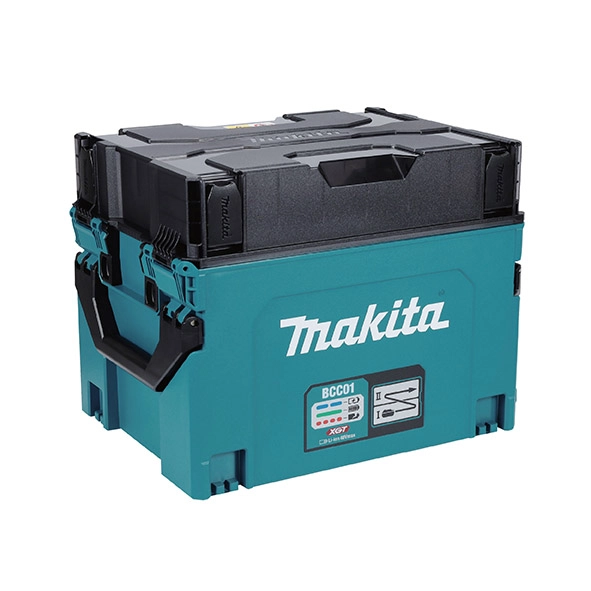

40Vmax Battery Charging Case


Features


  • MAKPAC type Battery Charging Case with multiple charging ports for XGT batteries.
  • Switch charging of batteries attached to multiple ports.
    • Batteries are charged by connecting adapter-type charger DC4002 to multi-port Battery Charging Case BCC01.
    • Capable of charging all batteries on four ports simultaneously. Equipped with a feature that automatically switches batteries to charge them.
    • 14.4V/18V LXT batteries can be charged in combination with 40Vmax XGT batteries by using interchangeable adapters ADP10 provided as optional accessory.
  • Multiple units can be connected to a single outlet.
    Targeting nighttime charging of a large number of batteries, multiple units can be connected simultaneously to a single power outlet with reduced power consumption.
  • Designed to be connected to MAKPAC carriers.
    • The same size as MAKPAC type 4.
    • Can be carried to the site by the MAKPAC trolley or cart.
  • Rotatable twin handles.
    • The handles are placed at two locations on both sides, allowing for two-handed grip.
    • The handles can be stored on the sides of the case when not in use.
    • The handles can be raised at an angle of 135° for easy grip during carrying.

Specification



Thumbnail
Model NameBCC01
Product Name40Vmax Battery Charging Case
Max Output Power230.4 W
Total Chargeable Capacity2,304 Wh
Number of Charging Ports8 (Switched in units of four ports)
Dimensions (L x W x H)295 x 407 x 320 mm
(11-5/8 x 16 x 12-5/8")
Net Weight6.5 - 7.5 kg (14.3 - 16.5 lbs)
Power Supply Cord2.0 m (6.6 ft)
Standard Equipment
Charger DC4002
Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
