Product Detail
Features
- Overview:

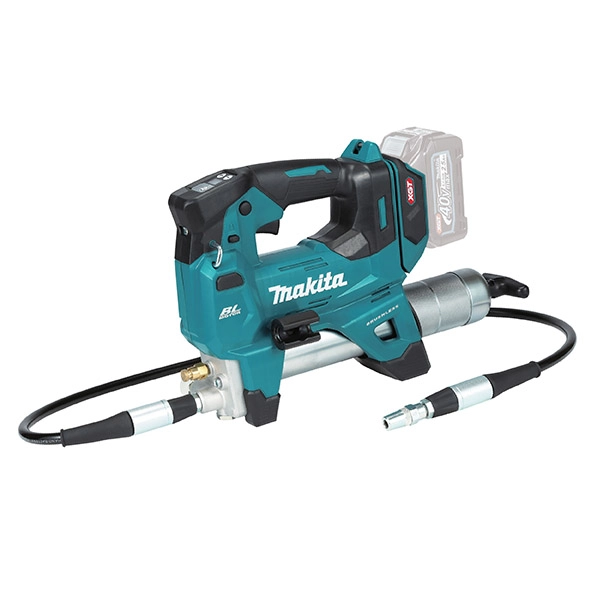

The GP001G is a cordless grease gun powered by a 40Vmax XGT Li-Ion battery. Equipped with a BL motor, this tool delivers stable, high-speed discharge that exceeds the DGP180 and competitors' models while maintaining the same maximum discharge pressure of 69 MPa.
The tool delivers stable, high-speed discharge even in operations with gradually increasing lubrication pressure, such as crawler track tensioning during construction machinery maintenance. - Discharge speed selection and preset counter for fixed-quantity discharge with LCD status display.
- Air lock detection function.
- Constant speed control for stable discharge operation.
- Easier bellows cartridge replacement with an improved housing design.
- Reduced air lock frequency during cartridge replacement by shortening the grease flow path.
Specification
| Thumbnail |  |
| Model Name | GP001GZ |
| Product Name | 40Vmax Cordless Grease Gun |
| Flow Rate | Mode 1: 145 mL/min (5.0 oz/min) Mode 2: 220 mL/min (7.5 oz/min) Mode 3: 290 mL/min (10.0 oz/min) Mode 4: 350 mL/min (12.0 oz/min) |
| Grease Capacity with Barrel A | Cartridge: 410 g (14.5 oz) | Bulk: 455 g (16.0 oz) |
| Max Operating Pressure | 69 MPa (10,000 PSI) |
| Hose Length | 120 cm (47-1/4") |
| Dimensions (L x W x H) | 395 x 112 x 245 mm (15-1/2 x 4-3/8 x 9-5/8") |
| Net Weight | 5.2 - 6.5 kg (11.5 - 14.3 lbs) |
| Work Amount (approx.) | 3,400 mL Dispencing Operating pressure 40 MPa at Mode 4 with BL4025 |
* Recommended batteries 2.0Ah, 2.5Ah, 4.0Ah, 4.0Ah (F)
Standard Equipment
Shoulder Belt
Available Option
Z: Without Charger & Battery
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
