Product Detail
Features
- Overview:

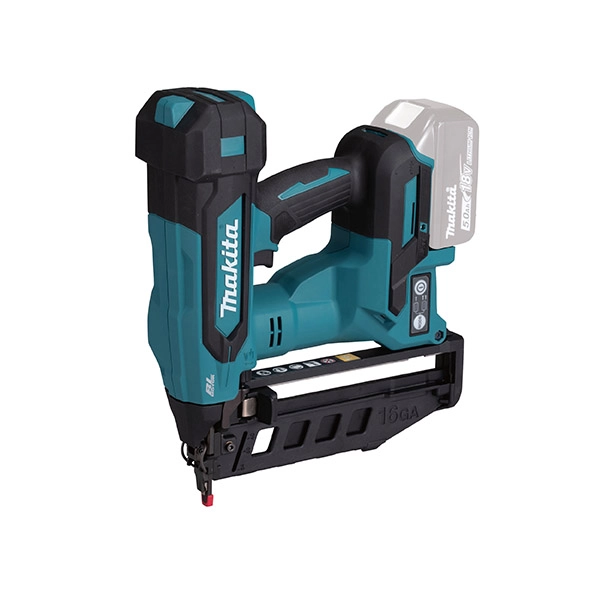

The DBN601 is a 64 mm (2-1/2") cordless finish nailer compatible with 16 gauge finish nails (straight-type), powered by an 18V LXT Li-Ion battery. Featuring a pneumatic spring mechanism, the recoil when driving nails is lighter and it offers a feel similar to pneumatic nailers, making it suitable for interior work and other nailing tasks. It is reliably able to drive 16 gauge finish nails up to 64 mm into hard woods such as red oak, while maintaining sufficient work capacity.
Without the hassle of a compressor and hose, the lightweight design offers better maneuverability and zero ramp-up time. It is designed to ensure the center of gravity remains optimal regardless of which compatible battery is attached, making it easy to aim and reducing arm strain and fatigue. - Rapid firing capability of 3.3 shots per second.
- Drives a range of 16 gauge finish nails from 19 mm (3/4") to 64 mm (2-1/2"); magazine capacity up to 110 nails.
- 2-mode selector switch for sequential or bump fire mode.
- Slim nose with an easy-to-aim ejection section for better visibility when driving nails.
Specification
| Thumbnail | ![]() |
| Model Name | DBN601Z |
| Product Name | 18V Cordless Finish Nailer |
| Capacity | Length: 19 - 64 mm (3/4 - 2-1/2") Gauge: 16 Ga |
| Magazine Capacity | 110 |
| Dimensions (L x W x H) | 276 x 98 x 320 mm (10-7/8 x 3-7/8 x 12-5/8") |
| Net Weight | 2.9 - 3.3 kg (6.4 - 7.3 lbs) |
| Work Amount (approx.) | 1100 pcs with BL1820B |
Standard Equipment
Nose Adapter, Hook
Available Option
Z: Without Charger & Battery
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
