Product Detail
Features
- Overview:

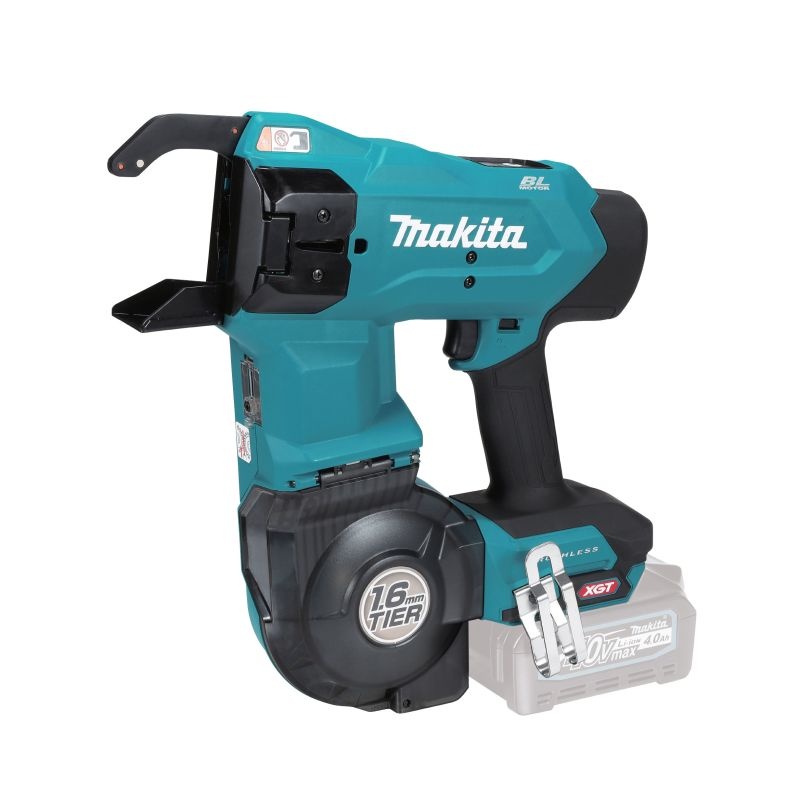

The TR001G is a cordless rebar tying tool powered by a 40Vmax XGT Li-Ion battery. Powered by an XGT battery and equipped with dual BL motors, the tool delivers high tying strength and speed using 1.6 mm wire.
Equipped with a wire pullback mechanism, the tool pulls back the wire while holding its tip, allowing the rebars to be tightly and securely tied. - Capable of tying a wide range of rebar sizes, from small to large diameters.
- The hook fits up to D19 rebars for easier tool hanging.
- One-step wire reel loading is enabled by a linked cover and gear mechanism.
- Clockwise wire twisting minimizes the chance of unintentional loosening when retightening by hand.
Specification
| Thumbnail |  |
| Model Name | TR001GZ |
| Product Name | 40Vmax Cordless Rebar Tying Tool |
| Tie Wire | Ø 1.6 mm |
| Applicable Rebars | D10 x D10 - (D16 x 2) x (D16 x 2) |
| Dimensions (L x W x H) | 375 x 113 x 331 mm (14-3/4 x 4-7/16 x 13") |
| Net Weight | 3.3 - 4.5 kg (7.3 - 9.9 lbs) |
| Work Amount (approx.) | 3900 times with BL4040 Tying D10 x D10 Rebar 240 ties per wire reel |
* Recommended batteries 2.0Ah, 2.5Ah, 4.0Ah, 4.0Ah (F) 5.0Ah
Standard Equipment
Oil Supply
Available Option
GZ: Without Charger & Battery
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
