Product Detail

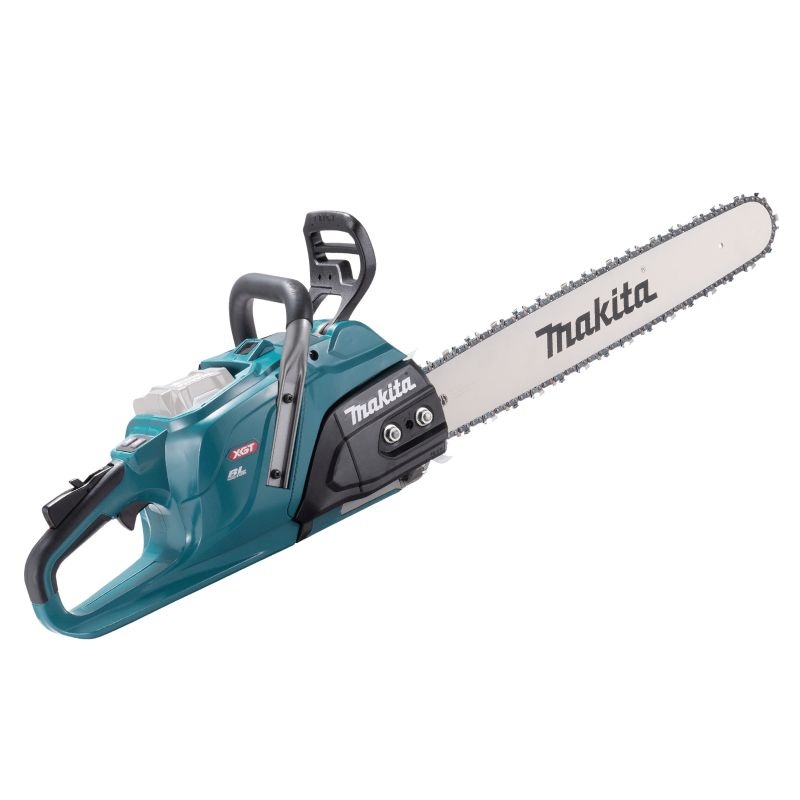

UC030GZ 500 mm (20")
40Vmax Cordless Chain Saw
Features
- Overview:
The UC030G is a cordless 400/450/500mm rear-handle chain saw powered by a 40Vmax XGT Li-Ion battery. In combination with the high-output battery BL4080H, this tool offers work efficiency equal or superior to that of 50cc-class engine chain saws, enabling smooth cutting of trees up to 400mm in diameter. - Fast acceleration in response to trigger operation enables smooth, continuous cutting tasks like limbing.
- Selectable chain speeds (ECO/Medium/High) with variable speed control by trigger and a mode memory function
- When excessive force is applied, the tool slows down, making it easy to adjust the load on the cutting edge.
- Enhanced operability with intuitive icons, bright LEDs, and responsive buttons.
- IPX4M-rated for use in rainy conditions.
- A shorter distance between the handle and hand guard allows quick and easy brake release.
- The air filter cover can be removed without tools, making cleaning easy and keeping debris out.
Specification
| Thumbnail |  |
| Model Name | UC030GZ |
| Product Name | 40Vmax Cordless Chain Saw |
| Guide Bar Length | 500 mm (20") |
| Chain Pitch | 0.325" |
| Chain Gauge | 1.3 mm (0.05") | 1.6 mm (0.063") |
| Chain Speed | 0 - 20.0, 24.5, 29.0 m/s |
| Chain Oil Tank Volume | 260 mL |
| Dimensions (L x W x H) | 449 x 232 x 280 mm (17-3/4 x 9-1/8 x 11") |
| Net Weight (with battery) | 4.5 kg (9.9 lbs) |
| Work Amount (approx.) | 28 cuts with BL4080H Ø 400 mm cedar log with 95 TXL saw chain |
* Recommended batteries 8.0Ah (H)
Standard Equipment
Guide Bar, Saw Chain, Guide Bar Case, Wrench, Chain Oil, Round File
Available Option
GZ: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
