Product Detail
Features

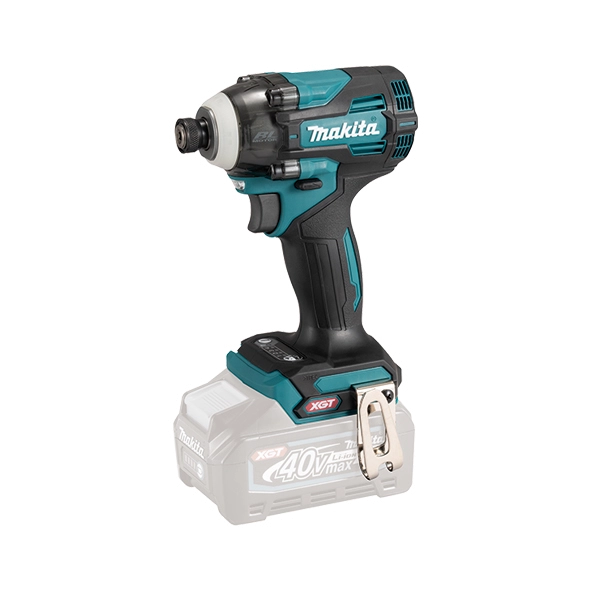

- 40Vmax XGT BL Cordless T-Mode 230 N·m (2,040 in. lbs.) Impact Driver.
- With a maximum fastening torque of 230 N·m, this tool delivers excellent fastening performance in heavy-duty tasks, such as tightening hex head or hexalobular (star-shaped) hole head course thread screws, which are less prone to cam-out.
- 4-stage impact power selection and T-mode (for thin metal sheets only) to match the type of screw and material.
• For tasks requiring attention to cam-out, such as with Phillips head screws, the impact force can be adjusted accordingly.
• Equipped with the T-Mode to minimize screw stripping, which is likely to occur when a self-drilling screw is tightened into a thin metal sheet workpiece under light load. - One-touch bit installation for easy and quick bit changes.
- Twin LED lights with preglow and afterglow functions for better illumination.
Specification
| Thumbnail |  |
| Model Name | TD004GZ |
| Product Name | 40Vmax Cordless Impact Driver |
| Capacity | Machine Screw: M4 - M8 (5/32 - 5/16") Standard Bolt: M5 - M20 (3/16 - 13/16") High Strength Bolt: M5 - M14 (3/16 - 9/16") Coarse thread (in length): 22 - 150 mm (7/8 - 5-7/8") |
| Hex Shank | 6.35 mm (1/4") |
| Impacts Per Minute (IPM) | Max: 0 - 3,900 | Hard: 0 - 3,600 Med.: 0 - 3,100 | Soft: 0 - 1,900 |
| Max Fastening Torque | 230 N·m (2,040 in lbs) |
| No Load Speed (RPM) | Max: 0 - 3,900 | Hard: 0 - 3,000 Med.: 0 - 2,100 | Soft: 0 - 1,200 |
| Dimensions (L x W x H) | 136 x 86 x 248 mm (5-3/8 x 3-3/8 x 9-3/4") |
| Net Weight | 1.8 - 3.1 kg (4.0 - 6.8 lbs) |
| Work Amount (approx.) | 113 pcs with BL4025 Hex head coarse thread screws 90 mm x 5.0 mm diameter into LVL (Laminated Veneer Lumber) |
* Recommended batteries 2.0 Ah, 2.5 Ah, 4.0 Ah, 4.0 Ah (F)
Standard Equipment
Hook
Available Option
• GZ: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
