Product Detail
Features
- With a maximum crimping capacity of ø17.5 mm (240 mm²), this tool is capable of crimping terminals onto large-diameter electric wires. This tool is able to perform crimping operations without dies.
- Crimping capacity.
• Cu: ø17.5 mm (240 mm²).
• Al: ø17.5 mm (240 mm²). - Auto retract function.
• The ram automatically retracts to its original position after completing the crimping operation, enhancing work efficiency.
• The On/Off setting of the auto retract function can be switched. - Single LED job light with afterglow function.
- Trigger-lock function to minimize accidental pulling of the switch trigger.
Specification

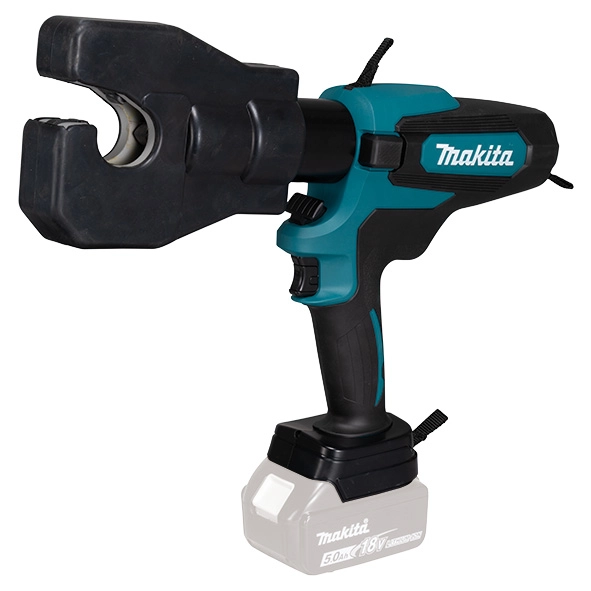

| Thumbnail |  |
| Model Name | DTC303ZK |
| Product Name | 18V Cordless Crimper |
| Ram Stroke Length | 31.5 mm (1-1/4") |
| Crimping Capacity | Cu: Ø 17.5 mm (240 mm²) Al: Ø 17.5 mm (240 mm²) |
| Output Force | 60 kN |
| Dimensions (L x W x H) | 401 x 82 x 348 mm (15-3/4 x 3-1/4 x 13-3/4") |
| Net Weight (with battery) | 5.3 - 5.7 kg (11.7 - 12.6 lbs) |
Available Option
ZK: With Carrying Case, Without Charger & Battery
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
