Product Detail
Features
- With a maximum crimping capacity of Ø 22.5 mm (400 mm²), this tool is capable of crimping terminals onto large-diameter electric wires.
- Crimping capacity.
• Cu: Ø 22.5 mm (400 mm²).
• Al: Ø 19.5 mm (300 mm²). - Auto retract function.
• The ram automatically retracts to its original position after completing the crimping operation, enhancing work efficiency.
• The On/Off setting of the auto retract function can be switched. - Single LED job light with afterglow function.
- Trigger-lock function to minimize accidental pulling of the switch trigger.
Specification
| Thumbnail |  |

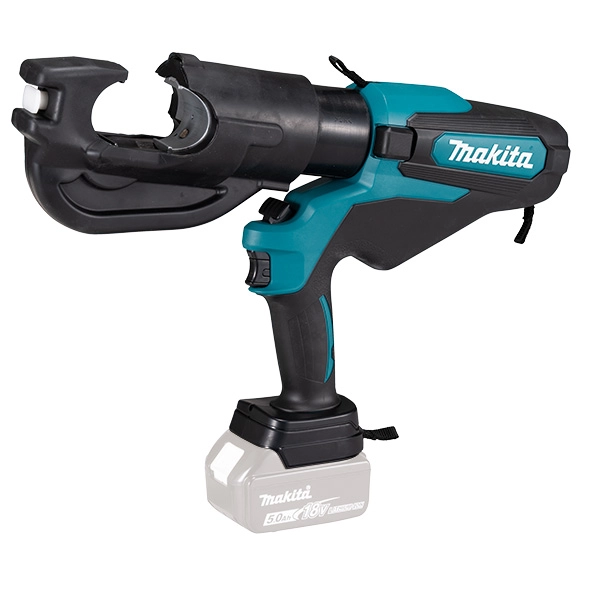

| Model Name | DTC302ZK |
| Product Name | 18V Cordless Crimper |
| Output Force | 120 kN |
| Ram Stroke Length | 42 mm (1-5/8") |
| Crimping Capacity | Cu: Ø 22.5 mm (400 mm²) Al: Ø 19.5 mm (300 mm²) |
| Dimensions (L x W x H) | 437 x 94 x 349 mm (17-1/4 x 3-11/16 x 13-3/4") |
| Net Weight (with battery) | 7.5 - 7.8 kg (16.5 - 17.2 lbs) |
Available Option
ZK: With Carrying Case, Without Charger & Battery
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
