Product Detail
Features
- With a maximum crimping capacity of Ø 19.5 mm (300 mm²), this tool is capable of crimping terminals onto large-diameter electric wires.
- Single LED job light with afterglow function.
- Crimping capacity.
• Cu: Ø 19.5 mm (300 mm²).
• Al: Ø 19.5 mm (300 mm²). - Trigger-lock function to minimize accidental pulling of the switch trigger.
- Straps for attaching the optional shoulder strap.
- Soft grip provides increased comfort during use.
Specification
| Thumbnail |  |
| Model Name | DTC301ZK |

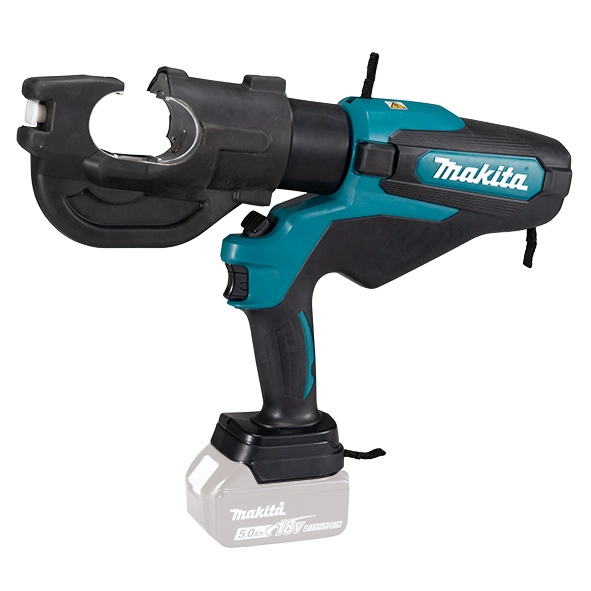

| Product Name | 18V Cordless Crimper |
| Output Force | 120 kN |
| Ram Stroke Length | 31 mm (1-1/4") |
| Crimping Capacity | Cu: Ø 19.5 mm (300 mm²) Al: Ø 19.5 mm (300 mm²) |
| Dimensions (L x W x H) | 415 x 92 x 346 mm (16-3/8 x 3-5/8 x 13-5/8") |
| Net Weight (with battery) | 6.8 - 7.1 kg (15.0 - 15.7 lbs) |
Available Option
ZK: With Carrying Case, Without Charger & Battery
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
