Product Detail

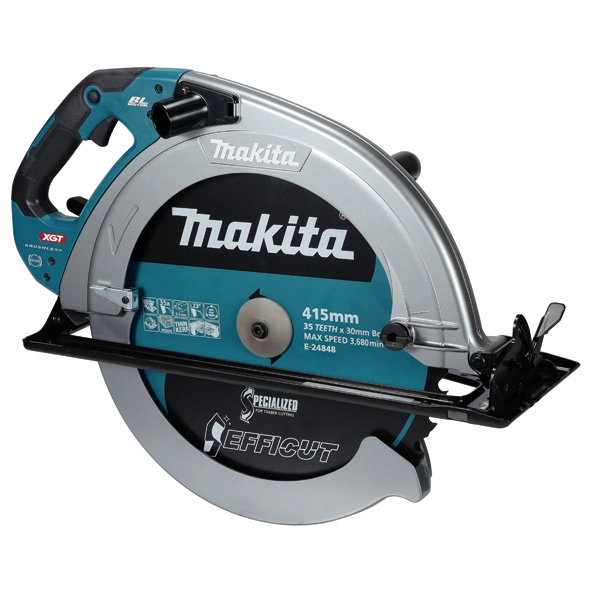

HS013GZ 415 mm (16-5/16")
40Vmax Cordless Circular Saw
Features
- 40Vmax XGT BL AWS Cordless 415 mm (16-5/16") Circular Saw, Electric Brake, Soft Start.
- This model has been developed based on model 5402NA, and with the adoption of an XGT battery and a BL motor, the tool has achieved high power similar to or superior to corded models, allowing for cutting through beams and sleepers with a thickness of up to 150mm in a single stroke.
- High-power cutting of 6x timbers.
• The largest cordless circular saw in the world (As of August 2024).
• Power similar to or superior to model 5402NA or competitors' corded models has been achieved by higher voltage with an XGT battery and adopting a BL motor (BL68-30) and EFFICUT saw blade. - Lightweight design and enhanced maneuverability
• The motor housing material has been changed from aluminum to resin, resulting in a weight reduction of 1.5kg compared with model 5402NA when a BL4050F battery is installed (this reduction has been achieved without compromising rigidity, ensuring the durability similar or superior to the current model).
• With the adoption of a BL motor, the width has been reduced by 65 mm compared with model 5402NA, enhancing stability and maneuverability during blade changes. - Max cutting capacity: 158 mm.
Specification
| Thumbnail |  |
| Model Name | HS013GZ |
| Product Name | 40Vmax Cordless Circular Saw |
| Blade Diameter | 415 mm (16-5/16") |
| Max Cutting Capacity | 0°: 158 mm (6-1/4") 45°: 106 mm (4-3/16") |
| No Load Speed (RPM) | 2,100 |
| Dimensions (L x W x H) | 606 x 233 x 476 mm (23-7/8 X 9-1/8 X 18-3/4") |
| Net Weight | 11.0 - 12.0 kg (24.3 - 26.5 lbs) |
| Work Amount (approx.) | 75 cuts with BL4050F Melapi thickness 150 mm width 300 mm Bevel angle 0° |
* Recommended batteries 4.0 Ah (F), 5.0 Ah, 8.0 Ah
Not compatible with 2.0 Ah & 2.5 Ah batteries
Standard Equipment
TCT Saw Blade, Hex Wrench, Joint, Protect Stand
Available Option
• GZ: Without Charger & Battery
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
