Product Detail

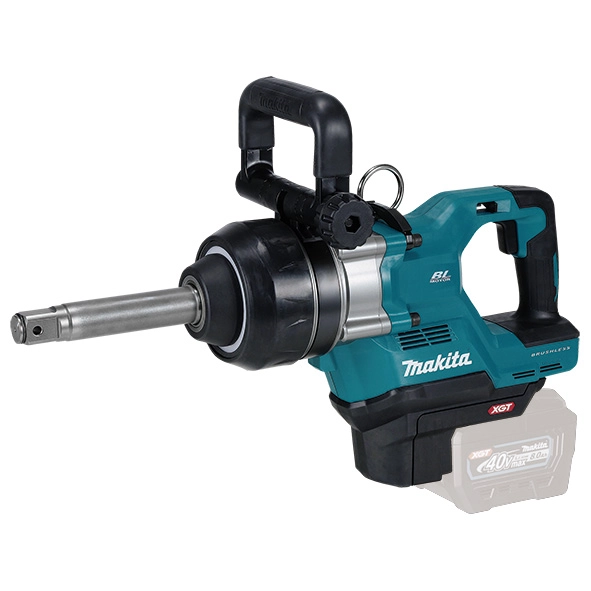

TW010GZ 25.4 mm (1") Long Anvil
40Vmax Cordless Impact Wrench
Features
- 40Vmax XGT BL Cordless 1" (25.4 mm) 3,150 N·m (2,320 ft.lbs.) Impact Wrench, Forward/Reverse Rotation Auto Stop Mode.
- Model TW010G is a cordless 25.4mm (1"") square drive D-handle impact wrench powered by a 40Vmax XGT Li-Ion battery.
- High-torque and Excellent maneuverability.
- Trigger switch with full speed mode (Variable speed / Full speed).
- Auto-stop system available in both forward/reverse rotation modes.
Specification
| Thumbnail |  |
| Model Name | TW010GZ |
| Product Name | 40Vmax Cordless Impact Wrench |
| Fastening Capacities | Standard Bolt: M27 - M45 (1-1/8 - 1-7/8") High Strength Bolt: M20 - M33 (3/4 - 1-3/8") |
| Square Drive | 25.4 mm (1") |
| Nut-Busting Torque | 4,000 N·m (2,950 ft lbs) |
| Impacts Per Minute (IPM) | Max: 0 - 1,750 | Hard: 1,500 | Mid: 1,300 | Soft: 1,200 |
| Max Fastening Torque | 3,150 N·m (2,323 ft lbs) |
| No Load Speed (RPM) | Max: 0 - 1,200 | Hard: 850 | Mid: 700 | Soft: 600 |
| Dimensions (L x W x H) | 570 x 135 x 297 mm (22-1/2 x 5-5/16 x 11-3/4") |
| Net Weight (with battery) | 11.8 - 12.8 kg (26.0 - 28.2 lbs) |
* Recommended batteries 4.0 Ah (F), 5.0 Ah, 8.0 Ah
Not compatible with 2.0 Ah & 2.5 Ah batteries
Available Option
GZ: Without Charger, Battery & Carrying Case
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
