Product Detail
Features

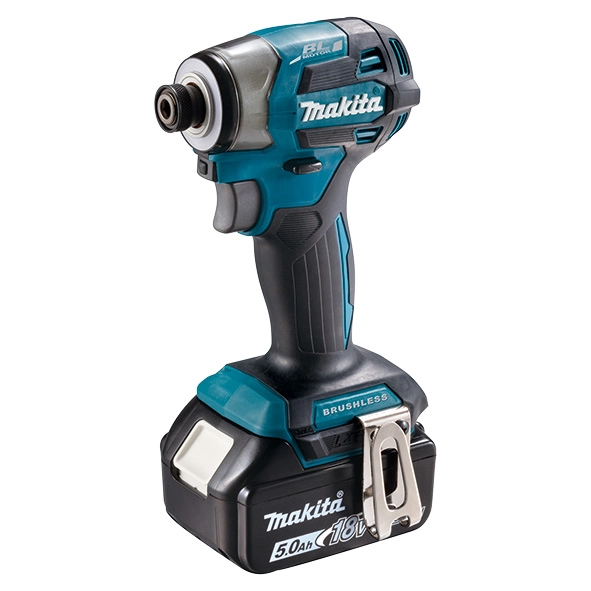

- 18V LXT BL Cordless Wood/Bolt/T-Mode 180 N·m (1,590 in.lbs.) Impact Driver.
- We have reduced the operator's burden and improved operability by revising the layout of the battery and the switch panel from DTD172 and slimming down the entire circumference of the head.
- Illumination shadows have been significantly reduced by adopting a ring illumination LED.
- Slim tool body
The protrusions on the LED sections on both sides have been eliminated, improving the screwdriving performance in tight corners or confined spaces. - Ring illumination LED
• The LED emits light in a ring shape from the tip of the hammer case, significantly reducing the shadow of the bit.
• The brightness (3 stages) can be changed by pressing and holding the mode switch button.
Specification
| Thumbnail |  |
| Model Name | DTD173RTJ/ Z |
| Product Name | 18V Cordless Impact Driver |
| Capacity | Machine Screw: M4 - M8 (5/32 - 5/16") Standard Bolt: M5 - M16 (3/16 - 5/8") High Strength Bolt: M5 - M14 (3/16 - 9/16") Coarse Thread (in length): 22 - 125 mm (7/8" - 4-7/8") Wood (Auger Bit): 24 mm (15/16") |
| Hex Shank | 6.35 mm (1/4") |
| Impacts Per Minute (IPM) | Max: 0 - 3,800 | Hard: 0 - 3,600 Med.: 0 - 2,600 | Soft: 0 - 1,100 |
| Max Fastening Torque | 180 N·m (1,590 in lbs) |
| No Load Speed (RPM) | Max: 0 - 3,600 | Hard: 0 - 3,200 Med.: 0 - 2,100 | Soft: 0 - 1,100 |
| Dimensions (L x W x H) | 111 x 81 x 234 mm (4-3/8 x 3-3/16 x 9-1/4") |
| Net Weight (with battery) | 1.5 kg (3.3 lbs) |
| Work Amount (approx.) | 970 pcs with BL1860B Coarse thread screw 65 mm at max impact mode |
Standard Equipment
Belt Clip
Available Options
RTJ: 1x Rapid Charger, 2x 5.0Ah Battery, 1x Makpac Connector Box Type 2
Z : Without Charger, Battery & Carrying Case
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
