Product Detail
Features

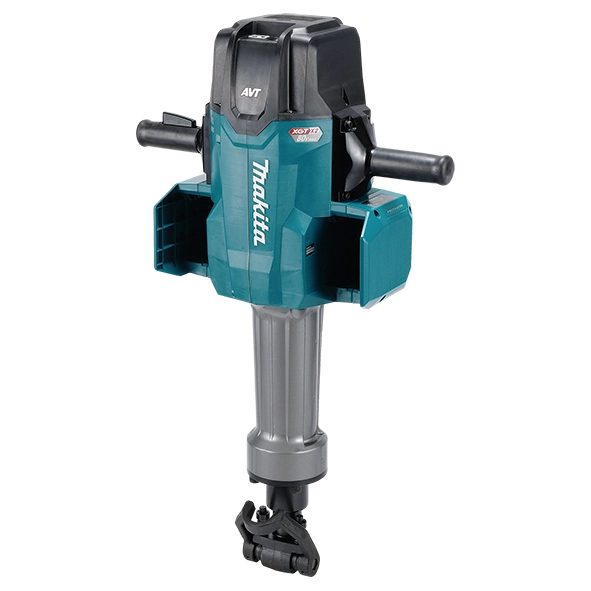

- 40Vmax x2 (80Vmax) XGT BL AWS AVT SOFT NO LOAD, 72.8 J Cordless Breaker, 28.6 mm Hex Shank.
- 80Vmax cordless breaker powered by two 40Vmax XGT Li-Ion batteries in series.
- This cordless model, with its 80Vmax high voltage and BL motor, achieves power similar to corded models.
- Improvement in work efficiency on site achieved by the following:
• No need to prepare generator for on-site operation.
• Work can be performed without considering voltage drop as when using a cable reel. - Low Vibration / Anti-Vibration Technology (AVT)
• The anti-vibration housing structure and counterweight reduce vibration transmitted to the user's hands, and theimpact energy of 72.8 J makes the tool high-power and highly efficient, while reducing the load on the user duringcontinuous chipping operation. - Maintenance warning function
• An indicator lamp provides a warning when maintenance is required, such as grease-up, replacement of parts, etc.
Specification
| Thumbnail |  |
| Model Name | HM004GZ05 |
| Product Name | 40Vmax X2 Cordless Breaker |
| Impact Energy | 72.8 J (53.7 ft.lbs) |
| Blows Per Minute (BPM) | 870 |
| Shank Diameter | Hex 28.6 mm (1-1/8") |
| Dimensions (L x W x H) | 882 x 227 x 540 mm (34-3/4 x 8-15/16 x 21-1/14") |
| Net Weight (with battery) | 29.7 - 32.1 kg (65.5 - 70.8 lbs) |
| Work Amount (approx.) | 946 kg with BL4080F x 2 Concreate 1000 x 800 x 300 mm chipped Grade 40 or 20 min continues usage |
* Recommended batteries 4.0 Ah, 4.0 Ah (F), 5.0 Ah, 8.0 Ah
Not compatible with 2.0 Ah & 2.5 Ah batteries
Standard Equipment
Hex Wrench, Self-Sharpening Bull Point (B-10372)
Available Option
GZ05: Without Charger & Battery
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
