Product Detail
Features

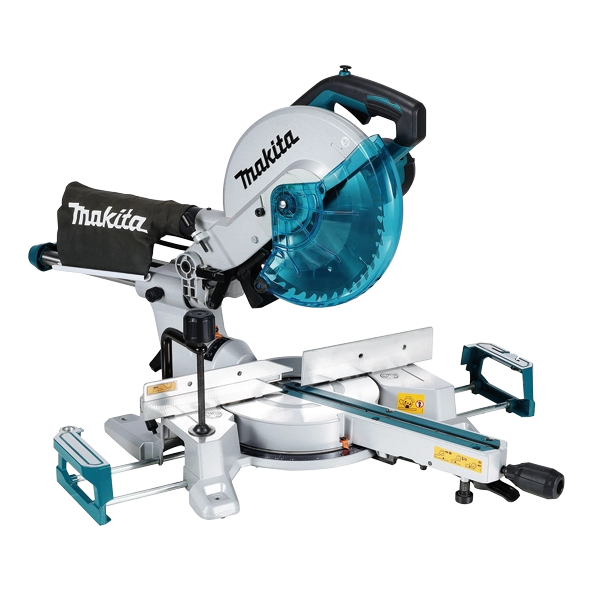

- 260 mm (10-1/4") 1,450 W Slide Compound Miter Saw, LED Light with Cut Line Guide Function
- Saw blade diameter is 255mm (10”) for North America, and 260mm (10-1/4”) for the others
- Cuts up to 310 mm (12-1/4”) at 90° and 220 mm (8-5/8”) at 45°
For North America, cuts up to 305 mm (12”) at 90° and 215 mm (8-1/2”) at 45° - LED job light with cut line guide function
LED job light casts a shadow of the saw blade onto the workpiece as an exact cutting line. By aligning the shadow with the ink line on the workpiece, you can make an exact cut - Improved cost competitiveness has been achieved by redesigning the specifications to suit target users and applications
- Sub base can be pulled out for more stable cutting of wide workpiece
- Electric brake for increased productivity and operator protection
- Soft Start feature gradually increases speed to eliminate start up shock
- Sliding Fence (Left Side) can be adjusted outwards when bevel cutting or inwards for increased support of small or delicate materials
Specification
Thumbnail | |
Model Name | LS1110F |
Product Name | Slide Compound Miter Saw |
Continuous Rating Input | 1,450 W |
Wheel Diameter | 255 - 260 mm (10 - 10-1/4") |
Miter Angle | 47° L / 47° R |
Bevel Angle | 47° L / 20° R |
Max Cutting Capacity | Miter 0°, Bevel 0° 91 x 310 mm (3-5/8 x 12-1/4") Miter 45°, L/R, Bevel 0° 91 x 220 mm (3-5/8 x 8-5/8") |
No Load Speed (RPM) | 4,500 minˉ1 |
Dimensions (L x W x H) | 745 x 497 x 565 mm (29-1/4 x 19-1/2 x 22-1/4") |
Net Weight | 16.4 kg (36.2 lbs.) |
Power Supply Cord | 2.0 m (6.6 ft) |
Standard Equipment
TCT Saw Blade (D-77338), Vertical Vise, Dust Bag, Hex Wrench
