Product Detail

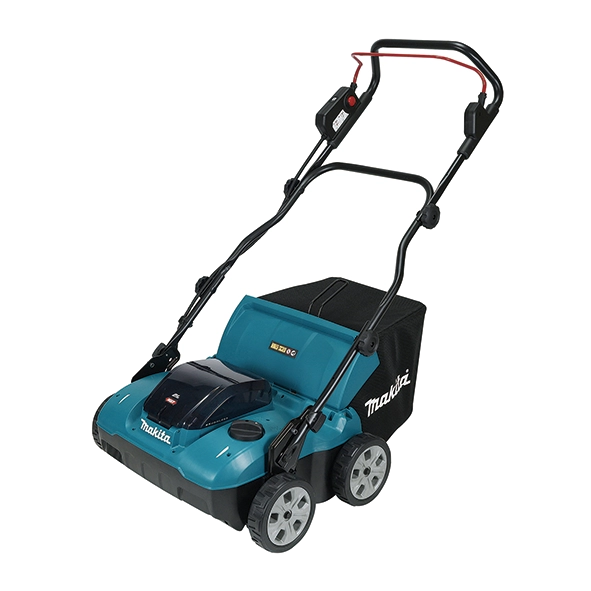

UV001GZ 380 mm (15")

40Vmax Cordless Scarifier


  • UV001G has been developed intended for thatching*1 and vertical cutting*2, both of which are essential for lawn maintenance, and designed to provide a working width of 380mm and a working depth of 12mm
    *1 For removing deposited lawn clippings, generated moss, etc.
    *2 For cutting through old roots for healthy lawn, etc.
  • Powered by 40Vmax XGT Li-Ion battery (two in parallel or one)
  • Automatic battery switching; If two batteries are installed and one battery in use has run out of power, the battery system automatically switches to the other one (No special operation, such as on/off operation, is required)
  • XPT (eXtreme Protection Technology)/IPX4-compatible
  • Battery capacity warning lamp
    • One red light for each of the two lights
    • Blinks in red when the battery capacity decreases to 20% or less of full charge
    • Lights up in solid red when the battery cannot discharge
  • Toolless handle height adjustment (2 stages); Handle height can be adjusted without tool simply by pulling spring type Lock pin to release the lock (the same mechanism as that of DLM539)
  • Grass catcher capacity: 50L



Model NameUV001GZ
Product Name40Vmax Cordless Scarifier
Max Output1,700W
Cutting Width380 mm (15")
Working Depth (Scarifier)-12 mm (-15/32") to 5 mm (+3/16")
Grass Catcher Capacity50 L (1,760 oz)
No Load Speed (RPM)3,200 minˉ¹
Dimensions (L x W x H)1,020 - 1,240 x 680 x 915 - 1,155 mm
(40-1/4 - 48-3/4 x 26-3/4 x 36 - 45-1/2")
Net Weight18.7 - 23.8 kg (41.2 - 52.5 lbs.)
Continuous Usage Time (approx.)Vertical cutter: moving area 500 m² (-4 mm depth)
or 38 min with BL4080F x2
Thatching blade: moving area 510 m² (0 mm depth)
or 41 min with BL4080F x2

* Recommended batteries 2.5Ah, 4.0 Ah (F), 5.0 Ah, 8.0 Ah

Standard Equipment
Vertical Cutter, Thatching Blade, Socket Wrench, Grass Catcher

Available Option
GZ: Without Charger & Battery
