Product Detail
Features
- Ideal for cutting roofing sheet metal at thicknesses up to 16 gauge
- Die holder rotates 360° to meet demands of cutting direction
- Cutting radius: inner edge 45 mm (1-3/4"); outer 50 mm (2")
- Externally accessible carbon brushes for greater serviceability
- Easy punch and die replacement for reduced down time on the job
Specification
Thumbnail | |
Model Name | DJN161Z |
Capacity | Steel up to 400 N/mm² : 1.6 mm Steel up to 600 N/mm² : 1.2 mm Aluminum up to 200 N/mm² : 2.5 mm |
Min Cutting Radius | Inside edge : 45 mm (1 - 3/4") Outside edge : 50 mm (2") |

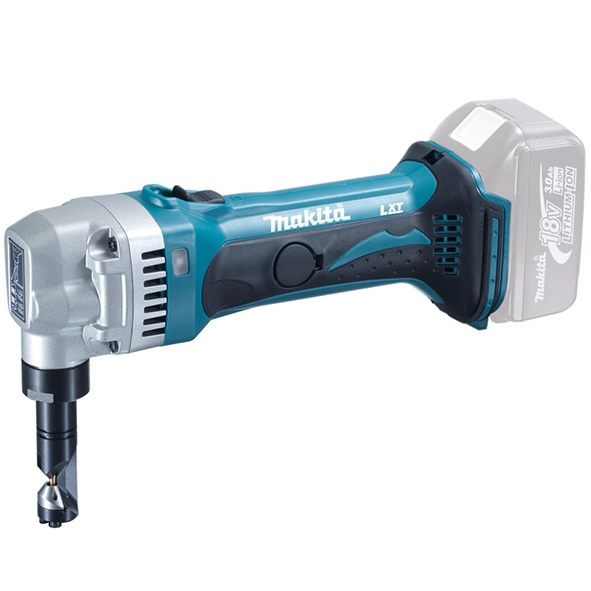

Product Name | 18V Cordless Nibbler |
Strokes Per Minute (SPM) | 1,900 |
Dimensions (L x W x H) | 313 x 78 x 189 mm (12-3/8" x 3-1/16" x 7-7/16") |
Net Weight | 1.9 - 2.3 kg (4.2 - 5.0 lbs.) |
Work Amount (approx.) | 30 m with BL1850B Cutting (Steel Plate 1 mm) |
Standard equipment
Hex Wrench, Wrench, Punch, Die
Available options
Z: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
