Product Detail
Features
- Easy operation
Developed specially for cutting only, allowing for lightweight design to provide excellent maneuverability - Closed type for precision cutting
- For cutting Al / Cu cable
- Automatic reverse function
The movable blade automatically returns to the set position after the cutting is completed - Adjustable blade return volume
The blade opening angle can be adjusted to suit the diameter of the cable to be cut - One LED job light with afterglow function
Specification

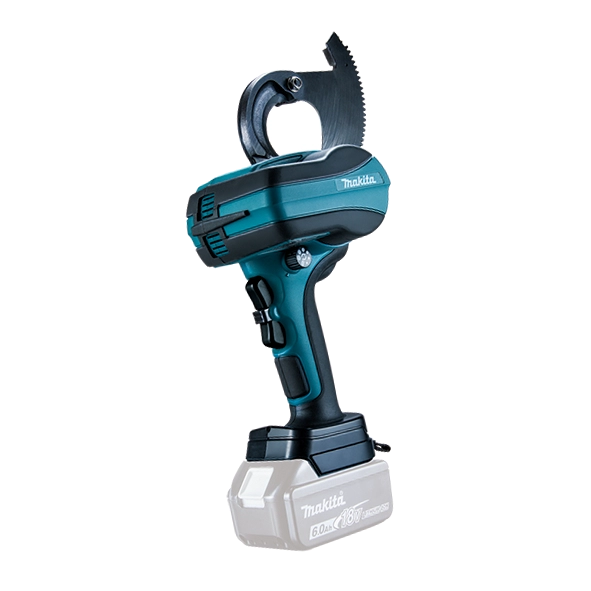

| Thumbnail |  |
| Model Name | DTC100ZK |
| Product Name | 18V Cordless Cable Cutter |
| Max Blade Opening Width | 50 mm (2”) |
| Max Cable Cutting Capacity | 600 V - CV: 500 mm² single-core (Ø 38 mm | 1-1/2”) 6600 V - CV: 500 mm² single-core (Ø 45 mm | 1-3/4”) 600 V - IV: 500 mm² single-core (Ø 35 mm | 1-3/8”) 600 V - VVR: 150 mm² triple-core (Ø 47 mm | 1-7/8”) |
| Dimensions (L x W x H) | 116 × 197 × 363 mm (4-9/16 × 7-3/4 × 14-1/4”) |
| Net Weight | 2.9 kg (6.4 lbs) |
Standard Equipment
Blade
Available Option
ZK : With Carrying Case, Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
