Product Detail

HR010GD201/ GZ 20 mm (13/16")

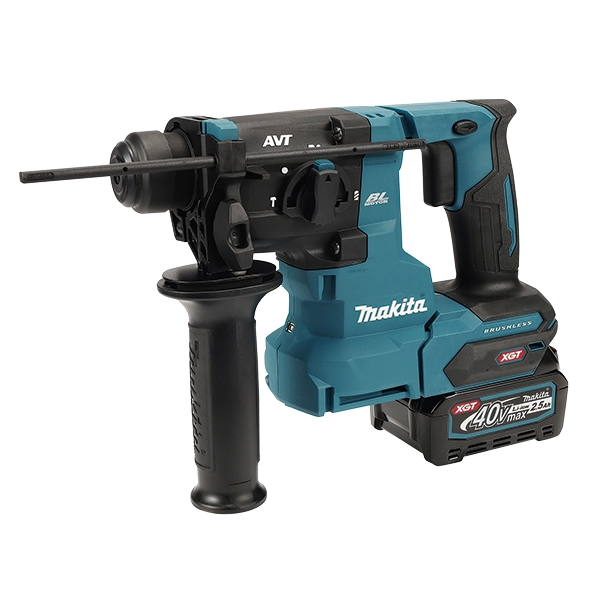

40Vmax Cordless Combination Hammer


  • 40Vmax XGT Cordless 20 mm (13/16") SDS-PLUS Combination Hammer, BL, AWS, AVT, LED light
  • HR010G is more efficient than competing models, yet compact and lightweight, providing excellent maneuverability
  • Compatible with compact and lightweight new dust collection system DX16
  • BL Motor Delivers 0-1,350 RPM, 0-5,000 BPM and 2.1 Joules of Impact Energy for Faster Drilling
  • Vibration absorbing main handle and anti-vibration side grip to reduce the vibration transmitted to operator's hand for providing comfortable operation
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • Built-in LED light with preglow and afterglow functions illuminates the work area
  • 3-mode operation for "Rotation Only", "Hammering only" or "Hammering with Rotation" for multiple applications
  • One touch sliding chuck enables quick and easy bit changes



Model NameHR010GD201/ GZ
Product Name40Vmax Cordless Combination Hammer
Impact EnergyEPTA-Procedure 05/2009: 2.1 J
Max Output1,000 W
CapacityConcrete (with TCT bit): 20 mm (13/16")
Steel: 13 mm (1/2")
Wood: 26 mm (1")
Core Bit: 35 mm (1-3/8")
Diamond Core Bit: 35 mm (1-3/8")
No Load Speed (RPM)0 - 1,350
Dimensions (L x W x H)289 x 93 x 217 mm
(11-3/8 x 3-5/8 x 8-1/2")
Net Weight2.8 - 4.5 kg (6.2 - 9.9 lbs.)
Work Amount (approx.)75 holes with BL4025
Mansory drill Ø 10.5 mm concrete 40 N/ mm²
Depth 60 mm

* Recommended batteries 2.0Ah, 2.5Ah, 4.0Ah

Standard Equipment
Side Grip, Depth Gauge
HR010GD201: 1x DX16 Dust Collection System Set, 5x Sealing Cap

Available Option
GD201: 1x Fast Charger, 2x 2.5Ah Battery, 1x Makpac Connector Case (Type 4)
GZ: Without Charger, Battery & Carrying Case
