Product Detail

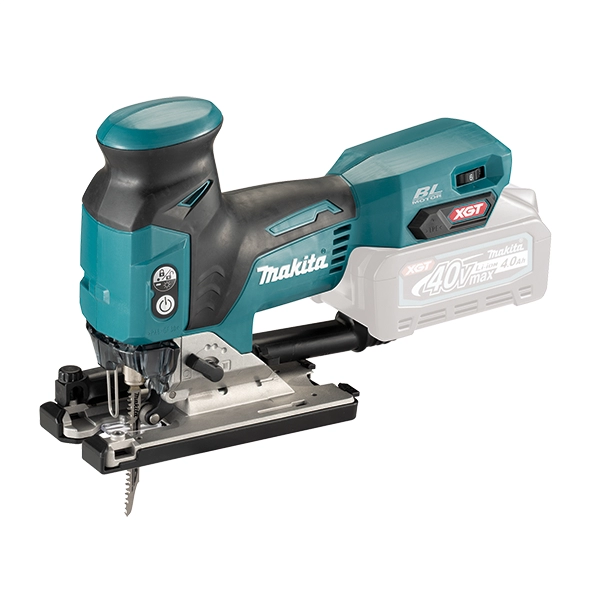

40Vmax Cordless Jig Saw


  • 40Vmax XGT BL Cordless Barrel Handle Jig Saw, 3 Orbital Settings plus Straight Cutting, Twin LED Lights
  • More efficient than our existing AC and DC models, allowing for smooth and efficient cutting of 48 mm thick MDF
  • Higher user-friendliness has been achieved by adding light reduction function, redesigning tool body shape and more
  • XGT technology and constant speed control reduce the chance of drop in cutting speed even during heavy duty applications such as cutting 48 mm thick MDF, providing improved cutting performance
  • High power tool, yet with a barrel handle, which provides easier tool handling due to the same ease-to-grip as DJV181 and a tool overall length shorter than the LXT model achieved by redesigning the shape of inside parts
  • New Soft no-load
    • Easy, precise alignment of blade with pencil line at cut starting point
    • With disabling function
    • If the tool detects no-load motor rotation during intermittent operation such as precision cut-out, it switches automatically back to Soft no-load mode
  • Less wobbling
    Improved stability during cutting due to a wider base plate



Model NameJV001GZ
Product Name40Vmax Cordless Jig Saw
Max Output700 W
CapacityWood: 135 mm (5-5/16")
Mild Steel: 10 mm (3/8")
Aluminum: 20 mm (13/16")
Bevel Range0 - 45°
Length of Stroke26 mm (1")
Strokes Per Minute (SPM)800 - 3,500
Dimensions (L x W x H)269 x 84 x 189 mm
(10-5/8 x 3-5/16 x 7-7/16")
Net Weight2.6 - 2.9 kg (5.7 - 6.4 lbs.)
Work Amount (approx.)230 pcs with BL4040, sawing with blade B-10
with max orbital mode
MDF thickness 24 mm x width 300 mm

* Recommended batteries 2.0Ah, 2.5Ah, 4.0Ah

Standard Equipment
Anti-Splitering Device, Hex Wrench 4, Jig Saw Blade Set
(No. BR-10, BR-13, B-22, 2pcs each)

Available Option
GZ: Without Charger & Battery
