Product Detail

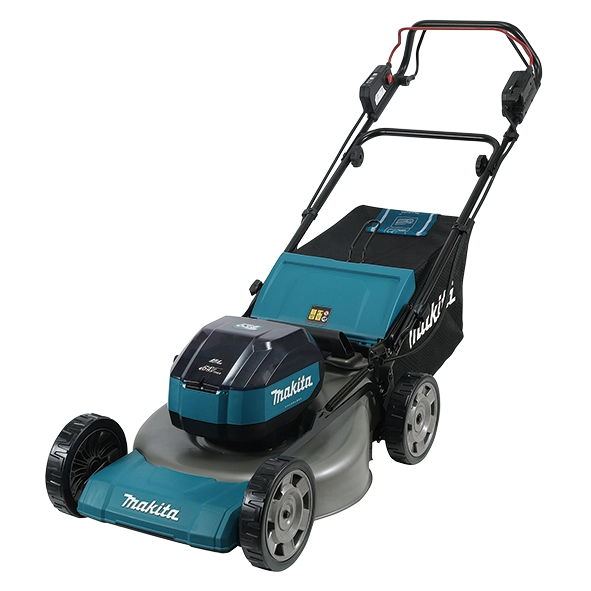

LM004JZ 530 mm (21")

64Vmax Cordless Lawn Mower


  • 64Vmax BL Cordless 53 cm (21") Self-Propelled Lawn Mower
  • 64Vmax Li-Ion battery and new Outer Rotor BL motor enable high-power operation similar to that of a 3 kW class engine lawn mower
  • High power
    • Higher voltage and New Outer Rotor BL motor suitable for lawn mower enable high power and high efficiency operation
    similar to that of a 3kW class engine lawn mower
    • Ideal for more heavy-duty continuous operation in combination with the simultaneously developed BL64100 battery
  • New steel cutting deck
    • Improved grass collection due to improved air flow in the deck
    • This deck is engineered as a unit, which will also be applicable to future products of other battery platforms
  • 3 Cutting mode selection
    • Selectable according to operating environment:
    ∙ Normal mode
    ∙ Soft no-load mode
    ∙ Noise reduction mode
    • Compared with LM001C, user can perform long, energy saving and quiet operation, because the current threshold, at which the blade speed increases to full in Soft no-load mode, has been shifted towards the high-load side
    • Quicker acceleration of the rotational speed of blade
    Acceleration from rest to full speed:
    ∙ LM001G/ LM002G: 5 seconds
    ∙ LM003J/ LM004J: 1 second
    • Due to the above benefit, the acceleration from low to high speed in Soft no-load mode has also been improved



Model NameLM004JZ
Product Name64Vmax Cordless Lawn Mower
Max Output3,200 W
Cutting Width534 mm (21")
Cutting Height20 - 100 mm (13/16" - 3-15/16")
Propelling Speed1.5 - 6.5 km/h
Wheel DiameterFront & Rear: 230 mm (9")
No Load Speed (RPM)Normal Mode: 2,800
Soft no-load mode: 2,300 - 2,800
Low Noise Mode: 2,300
Dimensions (L x W x H)1,740 - 1,810 x 595 x 970 - 1,080 mm
(68-1/2 - 71-1/4 x 23-1/2 x 38-1/4 - 42-1/2")
Net Weight31.5 - 34.6 kg (69.5 - 76.3 lbs.)
Actual Mowing Area3,800 m² (Push-Drive) | 2,800 m² (Self-propelled)
with BL64100 Battery
Continuous Usage Time (approx.)66 min (Push-Drive) | 55 min (Self-propelled)
with BL64100 Battery

Standard Equipment
Rod 6, Socket Wrench 17

Available Option
JZ: Without Charger & Battery
