Product Detail
Features

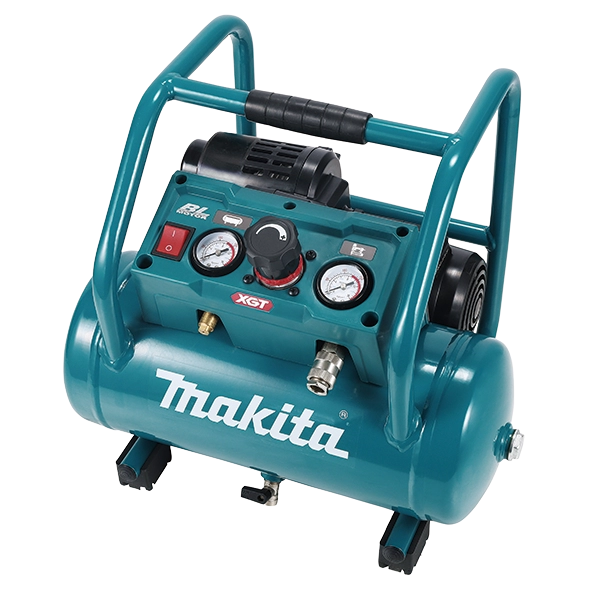

- 40Vmax XGT BL Cordless Air Compressor
- Developed mainly for interior nailing applications e.g. finish nailing with 18 Ga nail
- Portable air station for regular pressure tools
- Low noise level, yet with excellent combination of high air flow and lightweight design
- Surrounding environment-friendly machine with low noise level
• A belt drive is used to reduce the motor speed to the proper one at the compression unit, featuring low noise level similar or lower than Competitor M - Excellent combination of high air flow and lightweight design
• Both high air flow and lightweight design, which are similar to that of Competitor D, have been achieved by adjusting the compression unit and parts layout, increasing work efficiency and portability - Quiet design for operator and crew comfort; ideal for indoor use
- Lightweight design for increased job site portability
Specification
Thumbnail | |
Model Name | AC001GZ |
Air Flow | 34 L/min (1.2 SCFM) at 0.62 MPa (90 PSI): |
Product Name | 40Vmax Cordless Air Compressor |
Tank | 7.6 L (2 gal) |
Max Air Pressure In Tank | 0.93 MPa (135 PSI) |
Number of Outlets | 1 |
Recovery Time (from empty to full) | 100 sec |
Actual Nail-driving Performance | 717 pcs nail with BL4040 |
No Load Speed (RPM) | Motor shaft: 6,000 Crank shaft: 2,075 |
Dimensions (L x W x H) | 302 x 434 x 382 mm (11-7/8 x 17-1/8 x 15") |
Net Weight | 11.6 - 12.8 kg (25.6 - 28.2 lbs.) |
* Recommended batteries 4.0 Ah, 5.0 Ah, 8.0 Ah
Available Option
GZ: Without Charger & Battery
* Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
