Product Detail


  • Compact and lightweight for reduced operator fatigue
  • Lock on button for continuous operation
  • Soft start allows for accurate landing of the blade on the surface of the workpiece
  • 3 orbital settings plus straight cutting for use in a wide range of materials
  • Soft no-load rotation reduces vibration and aligns blade with the cutting line easily
  • LED job light (Single LED with light up function during standby mode)
  • Toolless blade clamp for easy blade change with one hand
  • Electric brake for increased productivity
  • Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions



Model NameDJV185Z

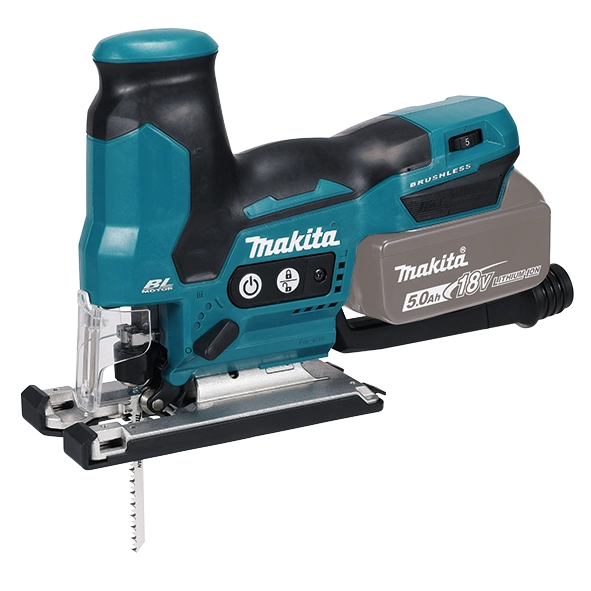

Product Name18V Cordless Jig Saw
CapacityWood: 135 mm (5-5/16")
Mild Steel: 10 mm (3/8")
Aluminum: 20 mm (25/32")
Length of Stroke23 mm (7/8")
Strokes Per Minute (SPM)800 - 3,000
Dimensions (L x W x H)259 x 77 x 183 mm (10-1/4 x 3 x 7-1/4")
Net Weight2.0 - 2.3 kg (4.4 - 5.1 lbs.)
Work Amount (approx.)175 pcs with BL1860B
Sawing with blade B-10
with max orbital mode
MDF thickness 24 mm x width 300 mm

Standard Equipment
Dust Nozzle, Cover Plate, Dust Cover, Hex. Wrench 3,
Jigsaw Blade (No.B-10, No.B-22, No.BR-13, 2 pcs each)

Available Option
Z: Without Charger & Battery
