Product Detail

Features


  • 4CFM class cordless vacuum pump for air purge during installation of air conditioning systems
  • High power for 20 HP professional-use refrigeration case and large air conditioner
  • Compression type: Oil-sealed rotary vane type, Dual-stage compression
  • Check valve: Electromagnetic valve
  • Removes all air from refrigerant tubing to create a vacuum environment before the tubing is charged with refrigerant gas
  • Easy to carry with a compact and lightweight body
  • Built-in metal mesh filter minimizes vacuum pump oil from scattering from exhaust port
  • Drain port with valve allows for easy change of vacuum oil pump
  • Valve minimizes securely oil back flow
  • Battery guards minimize the possibility of battery damage even if the machine falls down
  • Optional shoulder belt can be attached

Specification



Thumbnail
Model NameDVP181ZK

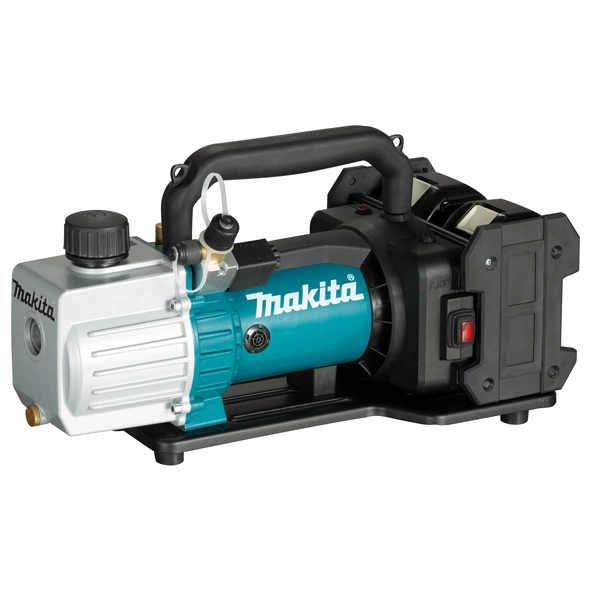

Product Name18V Cordless Vacuum Pump
Flow Rate113 L/min
Motor Speed3,200 minˉ¹
Oil Tank Capacity300 mL
Inlet port5/16" | 3/8"
Dimensions (L x W x H)383 x 193 x 210 mm
(15-1/8" x 7-5/8" x 8-1/4")
Net Weight8.1 - 8.2 kg (17.9 - 18.1 lbs.)
Continuous Usage Time60 min with BL1860B x2

Standard Equipment
Vacuum Pump Oil, Adapter

Available Option
ZK: With Carrying Case, Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
