Product Detail

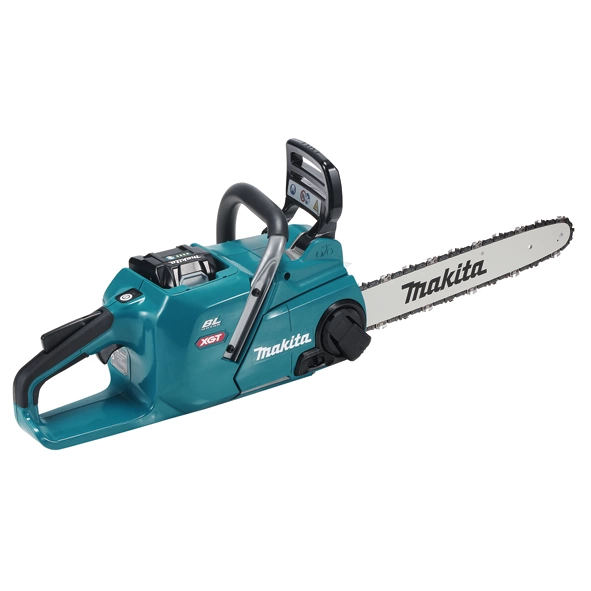

UC016GT101 / GZ 400 mm (16")

40Vmax Cordless Chain Saw


Features


  • Excellent cutting performance equivalent to 42mL class engine chain saws for smooth felling of trees with about 300mm trunk diameter
  • Main power switch with auto power-off function for battery saving and avoiding unintentional start up
  • Captive nuts minimize loss of nut
  • Large oil filling port with view window allows operator to easily add and check bar oil level
  • Metal spike bumper firmly grips workpiece to provide more control, making cutting easier
  • Adjustable automatic chain lubrication with large oil reservoir
  • Soft grip provides increased comfort
  • Mechanical brake & electric brake for maximum productivity
  • Tool-less chain adjustment for convenient operation and maintenance
  • Lock-off function minimizes accidental startup

Specification



Thumbnail
Model NameUC016GT101 / GZ
Product Name40Vmax Cordless Chain Saw
Max Output1,600 W
Guide Bar Length400 mm (16")
Chain Pitch3/8"
Chain Gauge1.1 mm (0.043")
Chain Speed0 - 25.5 m/s (0 - 1,530 m/min)
(0 - 5,020 FPM)
Oil Tank Capacity260 mL
Dimensions (L x W x H)445 x 234 x 275 mm
(17-1/2" x 9-1/4" x 10-7/8")
Net Weight6.2 - 7.5 kg (13.7 - 16.5 lbs.)
Work Amount35 cuts with BL4050F
Ø 300 mm Cedar Log

* Recommended batteries 5.0Ah

Standard Equipment
Saw Chain, Guide Bar, Guide Bar Cover, Wrench, Chain Oil, Round File,
Safety Goggles (195246-2)

Available Options
GT101: 1x Fast Charger (DC40RA), 1x 5.0Ah Battery
GZ: Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
