Product Detail

CL002GA117/ GA104/ GZ03/ GZ07

40Vmax Cordless Cleaner


  • Quiet cleaning achieved by redesigning the exhaust air flow path of the motor to reduce wind noise
  • 4-mode suction power selection with mode memory function; The mode can be controlled by operation of ON/OFF button and Suction power change button; The cleaner can memorize a previous power mode and resume vacuuming at the same mode as last time user turned off for user convenience; Power mode can be selected before the cleaner is turned on; Selected power mode is indicated by 4 green LEDs
  • Redesigned Floor/ Carpet T-nozzle; Redesigned structure reduces the resistance caused by suction, providing smooth running; Redesigned inside air flow path reduces the noise made inside the nozzle
  • Higher max sealed suction minimizes; the drop in air flow when the filter is clogged; the drop in performance during use of the cyclone attachment
  • When the battery voltage drops, the electric current is calibrated so that the air flow does not drop. Thus, the suction power is maintained
  • Enhanced motor durability thanks to BL motor and improved dust-resistant performance
  • Two one-touch push button switches (one for ON/4-speed change, the other for OFF)
  • Built-in LED light illuminates the work area; Also functions as a battery capacity warning lamp; The light is turned on for 10 seconds by pressing the suction power change button; The light is kept continuously turned on by pressing ON/OFF button
  • Pipe is fixed by the locking mechanism to minimize it from accidentally coming off
  • Cleaning of tight places can be done without nozzle by using the beveled end of pipe as a nozzle

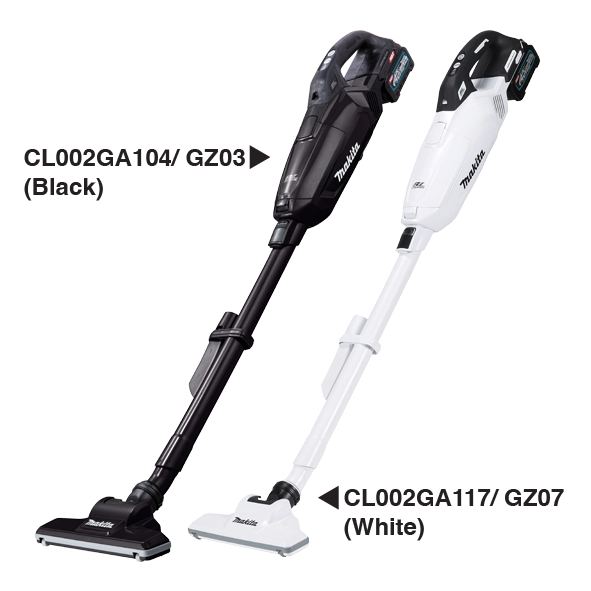

Model NameCL002GA117/ GA104/ GZ03/ GZ07
Product Name40Vmax Cordless Cleaner
CapacityCloth Dust Bag: 500 mL
Paper Dust Bag: 330 mL
Max Air Flow1.2 m³/min
Max Sealed Suction (water column)21 kPa (2,100 mmHâ‚‚O)
Suction Power4: 125 W | 3: 70 W |
2: 45 W | 1: 20 W
Dimensions (L x W x H)1,081 x 114 x 158 mm
(42-1/2 x 4-1/2 x 6-1/4")
Net Weight1.8 - 3.0 kg (4.0 - 6.6 lbs.)
Continuous Usage Time (approx.)4: 25 min | 3: 40 min | 2: 64 min |
1: 128 min with BL4040

* Recommended batteries 2.0Ah, 2.5Ah, 4.0Ah

Standard Equipment
Floor Nozzle, Sash Nozzle, Sash Nozzle Holder, Pipe, High Performance Dust Bag, Paper Dust Bag 5pcs (194566-1)

Available Options
GA117: 1x Standard Charger (DC40RC), 1x 2.0Ah Battery (White)
GA104: 1x Standard Charger (DC40RC), 1x 2.0Ah Battery (Black)
GZ03: Without Charger & Battery (Black)
GZ07: Without Charger & Battery (White)

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
