Product Detail
Features
- Combines power and precision for the most demanding routing applications
- Powerful 2,100 W motor delivers 9,000-23,000 RPM for the most demanding applications
- Deep 0 - 70 mm (0" - 2-3/4") plunge depth capacity for easy penetration into work piece
- Linear ball bearings for smooth plunge action and superior performance
- Quick release plunge depth adjustment with micro control along with 3 preset depth stops for added precision
- Dual LED lights with afterglow feature illuminate the work area
- Oversized ball bearing construction for longer tool life
- Ergonomic rubberized handles with built-in large two-finger switch for added control and use
- Conveniently located plunge lock lever for efficient operation
- Shaft lock for quick and easy bit changes
- Tool-less templet guide system for quick and easy installation and removal
Specification

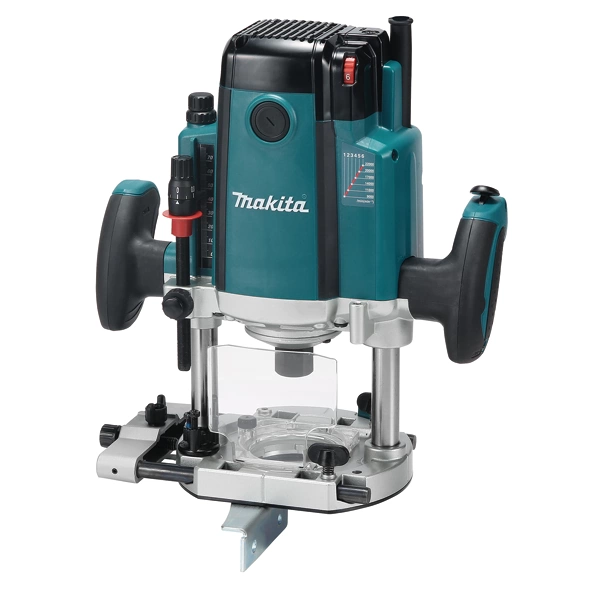

| Thumbnail |  |
| Model Name | RP2303FC05 |
| Continuous Rating Input | 2,100 W |
| Plunge Capacity | 0 - 70 mm (0 - 2-3/4") |
| Collet Capacity | 12 mm or 1/2" |
| Product Name | Router (Plunge type) |
| No Load Speed (RPM) | 9,000 - 23,000 |
| Dimensions (L x W x H) | 155 x 294 x 327 mm (6-1/8 x 11-5/8 x 12-7/8") |
| Net Weight | 6.2 kg (13.7 lbs) |
| Power Supply Cord | 4.0 m (13.1 ft) |
Standard Equipment
Straight Guide, Collet Sleeve, Collet Cone, Wrench, Straight Bit (D-07901)
Straight Guide, Collet Sleeve, Collet Cone, Wrench, Straight Bit (D-07901)
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
