Product Detail

Features


  • High cutting performance thanks to our 18V LXT platform
  • Compact and lightweight for reduced operator fatigue
  • Variable speed control by trigger helps the user adjust the speed by pulling the trigger gradually when aligning the blade precisely with the chalk lines
  • Lock on button for continuous operation
  • Soft start allows for accurate landing of the blade on the surface of the workpiece
  • 3 orbital settings plus straight cutting for use in a wide range of materials
  • Soft no-load rotation reduces vibration and aligns blade with the cutting line easily
  • Disabling soft no-load rotation function in operator's preference
  • LED job light (Single LED with light up function during standby mode)
  • Toolless blade clamp for easy blade change with one hand

Specification



Thumbnail
Model NameDJV184RFJ/ Z

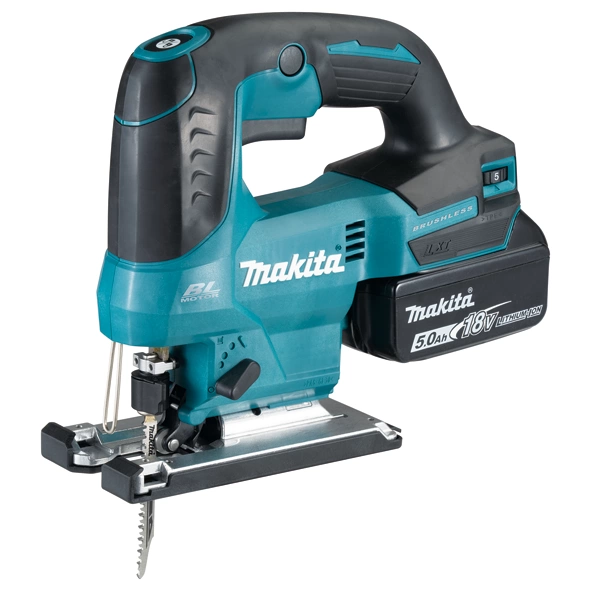

Product Name18V Cordless Jig Saw
CapacityWood: 135 mm (5-5/16")
Mild Steel: 10 mm (3/8")
Aluminum: 20 mm (25/32")
Length of Stroke23 mm (7/8")
Strokes Per Minute (SPM)0- 3,000
Dimensions (L x W x H)259 x 77 x 205 mm
(10-1/4" x 3" x 8-1/8")
Net Weight2.1 - 2.4 kg (4.6 - 5.3 lbs.)
Work Amount165 pcs with BL1860B
Sawing MDF wood (Thickness 24 mm x Width 300 mm)
with Blade B-10 and Max Orbital Mode

Standard Equipment
Jig Saw Blade (B-50), Hex Wrench, Cover Plate

Available Options
RFJ: 1x Rapid Charger (DC18RC), 2x 3.0Ah Battery, 1x Makpac Connector Box
Z: Without Charger, Battery & Carrying Case

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
