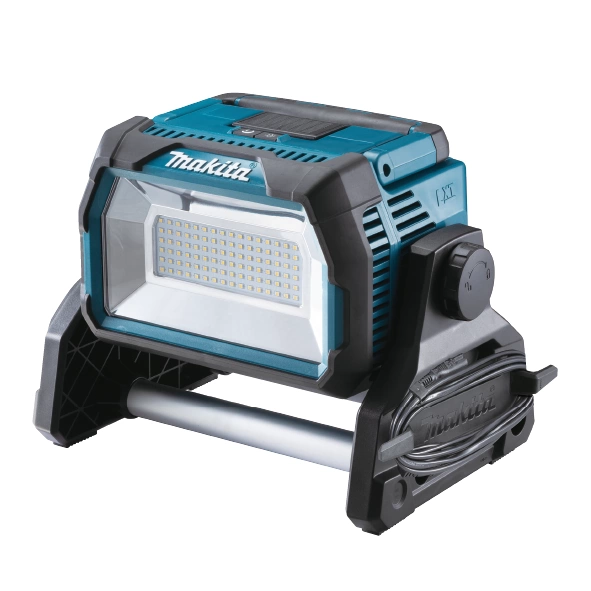

DML809 (GBDDML809)

18V Cordless Worklight


  • 3 brightness settings: 10,000 lumens on high mode, 4,000 lumens on medium mode or 2,000 lumens on low mode
  • 96 super luminous daylight white LEDs
  • Lighting coverage (approx.): 10 m in front, 10 m to either side
  • LED color is daylight white, which is similar to the natural light and ideal for working spaces
  • IP65 certified dust and water resistance (only with DC power)
  • Detachable AC power supply cord (detachable and can be stored on the stand base when not in use)
  • Compact design with a short height



Model NameDML809
Product Name18V Cordless Worklight
IlluminanceAt 1m from the light source: 3,800 / 1,500 / 800 lx
At 3m from the light source: 380 / 150 / 80 lx
At 5m from the light source: 150 / 60 / 30 lx
Luminous FluxHigh: 10,000lm | Mid: 4,000lm | Low: 2,000lm
Dimensions (L x W x H)249 x 370 x 278 mm (9-3/4 x 14-1/2 x 11")
Net Weight5.7 - 7.0 kg (12.6 - 15.4 lbs.)
Continuous Usage Time8.5 hrs with BL1860B x2 Low mode

Standard Equipment
AC Power Cord

Available Option
Without Charger & Battery

*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
